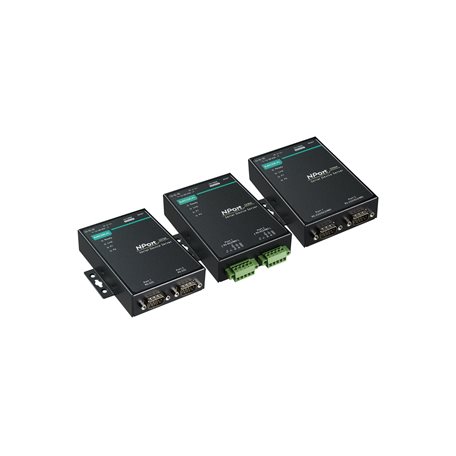

NPort 5200A Series: Moxa 2-port RS-232/422/485 with Surge Protection
Technical Specifications of Moxa 2-port RS-232/422/485 with Surge Protection NPort 5200A Series:
| Databits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Input Voltage | 12 to 48 VDC |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
Moxa 2-port RS-232/422/485 with Surge Protection NPort 5200A Series Technical Specifications:
| Specification | Value |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Configuration Options | Windows Utility, Serial Console ((NPort 5210A NPort 5210A-T, NPort 5250A, and NPort 5250A-T), Web Console (HTTP/HTTPS), Device Search Utility (DSU), MCC Tool, Telnet Console |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, Telnet, TCP/IP, UDP |
| Authentication | Local database |
| Encryption | AES-128, RSA-1024, SHA-256, HTTPS, SHA-1 |
| Security Protocols | HTTPS (TLS 1.2) |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| RS-485 Data Direction Control | NPort 5250A/5250A-T/5230A/5230A-T: ADDC (automatic data direction control) |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Input Voltage | 12 to 48 VDC |
| Operating Temperature | Standard models: 0 to 60°C (32 to 140°F), Wide temp. models: -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/35 |
| Safety | EN 62368-1, IEC 62368-1, UL 60950-1 |
| Warranty Period | 5 years |
Call us for Moxa 2-port RS-232/422/485 with Surge Protection NPort 5200A Series at the best rates. Technical Attributes of NPort 5200A Series, features 10/100BaseT(X) ports 1 featuring 1.5 kV (built-in) magnetic isolation protection for secure data transmission. These sensors support data bits of 5, 6, 7, 8 with stop bits options of Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k. Parity settings include None, None, Even, Odd, Space, Mark ensuring flexibility in communication protocols. Flow control is managed via RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF connections, with RS-485 data direction control, supported through RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF (automatic data direction control). The sensors include RS-232 signals for TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND operating on an input voltage range of 12 to 48 VDC. Designed for reliability, Standard models: 0 to 60°C (32 to 140°F), Wide temp. models: -40 to 75°C (-40 to 167°F). Compliant with EMC standards EN 55032/35 and safety standard EN 62368-1, IEC 62368-1, UL 60950-1.Unlock Exclusive Pricing with a Quote for your requirement of Moxa 2-port RS-232/422/485 with Surge Protection. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
