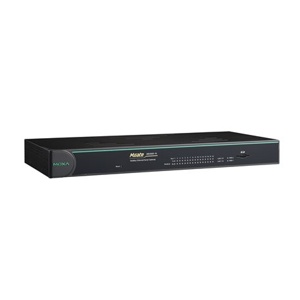

MGate MB3660 Series: Moxa 8 and 16-port redundant Modbus gateways
Technical Specifications of Moxa 8 and 16-port redundant Modbus gateways MGate MB3660 Series:
| Security Protocols | SNMPv3, HTTPS (TLS 1.2) |
| Input Voltage | All models: Redundant dual inputs, AC models: 100 to 240 VAC (50/60 Hz), DC models: 20 to 60 VDC (1.5 kV isolation) |
| Power Connector | Terminal block (for DC models) |
| IP Rating | IP30 |
Moxa 8 and 16-port redundant Modbus gateways MGate MB3660 Series Technical Specifications:
| Specification | Value |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | 2 IP addresses, Auto MDI/MDI-X connection |
| Industrial Protocols | Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client, RADIUS |
| Time Management | NTP Client |
| Security Protocols | SNMPv3, HTTPS (TLS 1.2) |
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Serial Standards | RS-232/422/485 (software-selectable) |
| Baudrate | 50 bps to 921.6 kbps |
| Isolation | 2 kV (I models) |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| Input Voltage | All models: Redundant dual inputs, AC models: 100 to 240 VAC (50/60 Hz), DC models: 20 to 60 VDC (1.5 kV isolation) |
| Power Connector | Terminal block (for DC models) |
| IP Rating | IP30 |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| EMC | EN 55032/35 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Warranty Period | 5 years |
IndMALL Automation Dealing offers Moxa 8 and 16-port redundant Modbus gateways MGate MB3660 Series at unbeatable prices. The Main Technical Parameters of MGate MB3660 Series are 2 IP addresses, Auto MDI/MDI-X connection 10/100BaseT(X) ports (RJ45 connectors), ensuring seamless network integration. These switches support industrial protocols such as Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, making them versatile for various industrial applications. Time management is handled through an NTP Client, ensuring precise time synchronization across your network. Security is robust, with protocols like SNMPv3, HTTPS (TLS 1.2) providing secure communication. The switches operate on a wide input voltage range of All models: Redundant dual inputs, AC models: 100 to 240 VAC (50/60 Hz), DC models: 20 to 60 VDC (1.5 kV isolation), and are equipped with a Terminal block (for DC models) for reliable power connections. With an IP30 rating, they are protected against dust and operate efficiently in extreme temperatures ranging from 0 to 60°C (32 to 140°F). Take the First Step with a Quote for your requirement of Moxa 8 and 16-port redundant Modbus gateways. Choose us for unparalleled pricing and support over other Dealers & Distributors.
