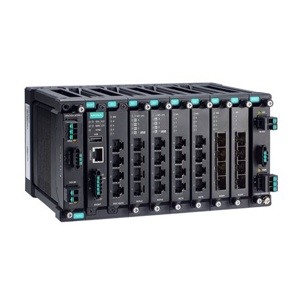

MDS-G4028-L3-4XGS Series: Moxa 4XG+24G Layer 3 Gigabit Modular Switches
Technical Specifications of Moxa 4XG+24G Layer 3 Gigabit Modular Ethernet Switches MDS-G4028-L3-4XGS Series:
| Standards | Telcordia SR332 |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| IP Rating | IP40 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
Moxa 4XG+24G Layer 3 Gigabit Modular Ethernet Switches MDS-G4028-L3-4XGS Series Technical Specifications:
| Specification | Value |
|---|---|
| Standards | Telcordia SR332 |
| Management | IPv4, ARP, Back Pressure Flow Control, DHCP Relay Agent (Option 82), Fiber check, Flow control, RARP, LLDP, Linkup Delay, Port Mirroring (SPAN, RSPAN), SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB |
| Redundancy Protocols | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MRP, MSTP, Network Loop Protection |
| Security | Access control list, Broadcast storm protection, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, Rate Limit, Trust access control, Static Port Lock, MAC Authentication Bypass, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, Secure Boot |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Input Voltage | With PWR-HV-P48–A installed:, 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC, With PWR-LV-P48–A installed:, 24/48 VDC, PoE: 48 VDC, With PWR-HV-NP installed, 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, With PWR-LV-NP installed:, 24/48 VDC |
| Overload Current Protection | Supported |
| IP Rating | IP40 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Warranty Period | 5 years |
| Total PoE Power Budget | Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems, Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems, Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems, Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems |
Ask for the Pricing of Moxa 4XG+24G Layer 3 Gigabit Modular Ethernet Switches MDS-G4028-L3-4XGS Series at unbeatable prices. Detailed Specifications of MDS-G4028-L3-4XGS Series features high standards Telcordia SR332 including overload current Supported and protection and IP40 rating, making them suitable for demanding industrial environments. The sensors operate reliably in extreme temperatures ranging from -40 to 75°C (-40 to 167°F). They are designed to meet stringent EMC standards, including EN 55032/35, EN 61000-6-2/-6-4 ensuring minimal electromagnetic interference. Built to withstand harsh conditions, these sensors comply with IEC 60068-2-27 for shock resistance and IEC 60068-2-6 for vibration tolerance. Now's the Time to Secure a Quote for your requirement of Moxa 4XG+24G Layer 3 Gigabit Modular Ethernet Switches. We're committed to offering more favorable pricing and more responsive support than other Traders.
