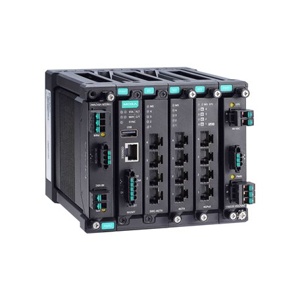

MDS-G4012-L3 Series: Moxa 12G-port Layer 3 Gigabit Modular Switches
Technical Specifications of Moxa 12G-port Layer 3 Gigabit Modular Managed Switches MDS-G4012-L3 Series:
| Standards | Telcordia SR332 |
| IP Rating | IP40 |
| Operating Temperature | Standard Temp Models: -10 to 60°C (-14 to 140°F) , Wide Temp Models: -40 to 75°C (-40 to 167°F) |
Moxa 12G-port Layer 3 Gigabit Modular Managed Switches MDS-G4012-L3 Series Technical Specifications:
| Specification | Value |
|---|---|
| Standards | Telcordia SR332 |
| Management | IPv4, Flow control, Back Pressure Flow Control, ARP, RARP, LLDP, DHCP Relay Agent (Option 82), Fiber Check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Loopback interface |
| Redundancy Protocols | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, MRP, MSTP, Network Loop Protection, Link Aggregation |
| Security | Access control list, Broadcast storm protection, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, MAC authentication bypass, MAC Sticky, Rate Limit, Trust access control, Static Port Lock, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy |
| Input Voltage | With PWR-HV-P48 installed:, 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC, With PWR-LV-P48 installed:, 24/48 VDC, PoE: 48 VDC, With PWR-HV-NP installed:, 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, With PWR-LV-NP installed:, 24/48 VDC |
| Overload Current Protection | Supported |
| IP Rating | IP40 |
| Operating Temperature | Standard Temp Models: -10 to 60°C (-14 to 140°F) , Wide Temp Models: -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Warranty Period | 5 years |
| Total PoE Power Budget | Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems, Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems, Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems, Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems |
IndMALL Automation Dealing offers Moxa 12G-port Layer 3 Gigabit Modular Managed Switches MDS-G4012-L3 Series at unbeatable prices. The Main Technical Parameters of MDS-G4012-L3 Series are high standards Telcordia SR332 including overload current Supported and protection and IP40 rating, making them suitable for demanding industrial environments. The sensors operate reliably in extreme temperatures ranging from Standard Temp Models: -10 to 60°C (-14 to 140°F) , Wide Temp Models: -40 to 75°C (-40 to 167°F). They are designed to meet stringent EMC standards, including EN 55032/35, EN 61000-6-2/-6-4 ensuring minimal electromagnetic interference. Built to withstand harsh conditions, these sensors comply with IEC 60068-2-27 for shock resistance and IEC 60068-2-6 for vibration tolerance. Take the First Step with a Quote for your requirement of Moxa 12G-port Layer 3 Gigabit Modular Managed Switches. Choose us for unparalleled pricing and support over other Dealers & Distributors.
