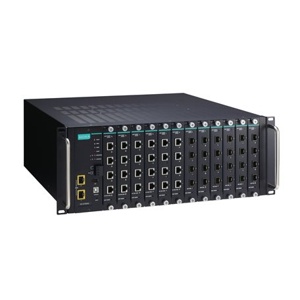

ICS-G7852A Series: Moxa 48G+4 10GbE-port Layer 3 Modular Switch
Technical Specifications of Moxa 48G+4 10GbE-port Layer 3 Full Gigabit Modular Managed Ethernet Switches ICS-G7852A Series:
| Standards | Telcordia (Bellcore), GB |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| IP Rating | IP30 |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
Moxa 48G+4 10GbE-port Layer 3 Full Gigabit Modular Managed Ethernet Switches ICS-G7852A Series Technical Specifications:
| Specification | Value |
|---|---|
| Standards | Telcordia (Bellcore), GB |
| Management | ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| Redundancy Protocols | Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON |
| Security | Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, TACACS+ |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Input Voltage | 110 to 220 VAC, Redundant dual inputs |
| Power Consumption (Max.) | 120.38/138.34 W @ 110/220 VAC, Note: These are the power consumption ratings for the device with the maximum number of modules installed. |
| Overload Current Protection | Supported |
| IP Rating | IP30 |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Warranty Period | 5 years |
| Total PoE Power Budget | Installed with IM-G7000A-4PoE Module: Maximum 1,440 W @ 48 VDC |
Call us for Moxa 48G+4 10GbE-port Layer 3 Full Gigabit Modular Managed Ethernet Switches ICS-G7852A Series at the best rates. Technical Attributes of ICS-G7852A Series are standards Telcordia (Bellcore), GB and overload current protection Supported, ensuring reliable performance. These sensors are rated IP30, making them suitable for various industrial applications. Operating temperature ranges from -10 to 60°C (14 to 140°F), ensuring functionality in extreme conditions. EMC compliance is met with EN 55032/35 standards, while EMI is controlled through CISPR 32, FCC Part 15B Class A certifications. The sensors are built to withstand harsh environments, with shock resistance according to IEC 60068-2-27 and vibration tolerance meeting IEC 60068-2-6. Unlock Exclusive Pricing with a Quote for your requirement of Moxa 48G+4 10GbE-port Layer 3 Full Gigabit Modular Managed Ethernet Switches. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
