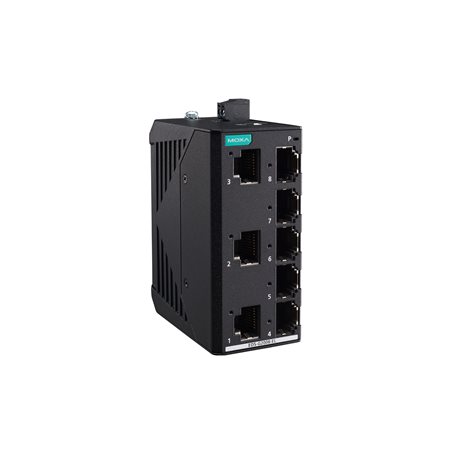

EDS-G2008-EL Series: Moxa 8-port Unmanaged Gigabit Switches, Metal
Technical Specifications of Moxa 8-port Unmanaged Gigabit Switches with Metal Housing EDS-G2008-EL Series:
| Dimensions | 36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Input Voltage | 12/24/48 VDC |
| Housing | Metal |
Moxa 8-port Unmanaged Gigabit Switches with Metal Housing EDS-G2008-EL Series Technical Specifications:
| Specification | Value |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed |
| Standards | Telcordia (Bellcore), GB |
| MAC Table Size | 4 K |
| Packet Buffer Size | 1.5 Mbits |
| Input Voltage | 12/24/48 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Dimensions | 36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Housing | Metal |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F), Wide Temp. Models (-T): -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| Warranty Period | 5 years |
IndMALL Automation Dealing offers Moxa 8-port Unmanaged Gigabit Switches with Metal Housing EDS-G2008-EL Series at unbeatable prices. The EDS-G2008-EL Series Datasheet highlights technical specifications such as Telcordia (Bellcore) and GB standards, ensuring reliable performance in industrial environments. These switches feature a 4 K MAC table size and a packet buffer size of 1.5 Mbits, providing efficient data handling capabilities. Operating on an input voltage of 12/24/48 VDC, they are equipped with reverse polarity protection for robust operation and safety. Installation is versatile, with options for DIN-rail or wall mounting (with optional kit). The durable Metal Housingensures it withstands harsh conditions. Compliance with EMC standards EN 55032/35, EN 61000-6-2/-6-4. Get a Quote for Moxa 8-port Unmanaged Gigabit Switches with Metal Housing Price and download the EDS-G2008-EL Series Manual.
