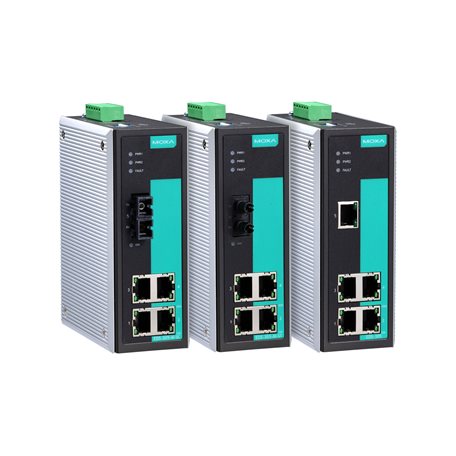

EDS-305 Series: Moxa 5-port Unmanaged Ethernet Switch
Technical Specifications of Moxa 5-port Unmanaged Ethernet Switch EDS-305 Series:
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Input Voltage | 24 VDC, Redundant dual inputs |
| Housing | Metal |
Moxa 5-port Unmanaged Ethernet Switch EDS-305 Series Technical Specifications:
| Specification | Value |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-305/305-T: 5, EDS-305-M-SC/M-ST/S-SC/S-SC-80: 4, All models support:, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection |
| Standards | MIL-HDBK-217F |
| MAC Table Size | 1 K |
| Packet Buffer Size | 384 K |
| Input Voltage | 24 VDC, Redundant dual inputs |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Housing | Metal |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F), Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| EMC | EN 55032/24 |
| Warranty Period | 5 years |
| IP Rating | IP30 |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | DNV |
IndMALL Automation Dealing offers Moxa 5-port Unmanaged Ethernet Switch EDS-305 Series at unbeatable prices. The EDS-305 Series Datasheet highlights key technical parameters, including MIL-HDBK-217F standards, ensuring reliable performance in industrial environments. These switches feature a 1 K MAC table size and a packet buffer size of 384 K, providing efficient data handling capabilities. Operating on an input voltage of 24 VDC with redundant dual inputs, they are equipped with reverse polarity protection, ensuring robust operation and safety. Installation is versatile, with options for DIN-rail mounting or wall mounting (with optional kit). The housing is constructed from durable metal, designed to withstand harsh conditions. Compliance with EMC standards EN 55032/24.
Get the EDS-305 Series Price and EDS-305 Series Manual today. Choose us for unparalleled pricing and support over other dealers & distributors.
