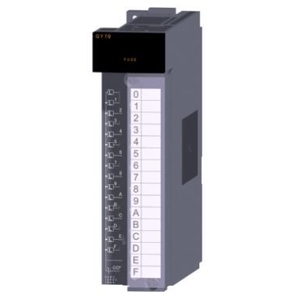

Mitsubishi QY70 - Programmable Logic Controller
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | QY70 |
Technical Specifications of Mitsubishi Programmable Logic Controller QY70
| Specification | Value |
|---|---|
| Series | MELSEC-Q SERIES |
| Type | TRANSISTOR OUTPUT (SINK) |
| Occupied I/O Points on PLC | 16 |
| Depth (mm) | 90 |
| Weight (kg) | 0,14 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| Power Supply (V) | 12-24 |
| Current Type | DC |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 5-12 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 95 |
The Mitsubishi QY70 PLC is a highly reliable transistor output module with sink logic, engineered for precise and consistent output switching in industrial environments. It provides 16 integrated digital outputs with a rated load voltage of 5β12 VDC, ensuring stable performance for low-voltage DC loads such as relays, LEDs, and solenoids. Operating on a DC power supply range of 12β24V, this PLC module delivers exceptional control efficiency for mid-sized automation tasks.
Its compact body, measuring just 27.4 mm in width, 98 mm in height, and 90 mm in depth, allows for easy mounting inside crowded control panels. The use of screw-type terminals enhances connection stability, especially in environments with high vibration. With an internal current consumption of 95 mA, the QY70 supports energy-conscious operations without sacrificing output precision.
Widely used in OEM machines, packaging lines, and general automation systems, the QY70 provides a trusted solution for engineers who value performance and durability. Its compatibility with other MELSEC-Q Series modules ensures easy system expansion, while Mitsubishiβs global support network adds long-term reliability. The Mitsubishi QY70 PLC is widely used across multiple automation sectors including bottling plants, machine tools, food processing, and conveyor-based systems. Its sink output logic makes it compatible with NPN devices, ensuring smooth operation in systems requiring reliable DC switching at 5β12 VDC.
In control cabinets, the QY70 efficiently handles signaling tasks, relay interfacing, actuator switching, and other time-critical operations. Maintenance engineers prefer this model for retrofitting or system upgrades due to its compact size and low-power consumption. For equipment designers and students in automation, the QY70 serves as a practical module to understand output interfacing in PLC-based systems.
Whether you are expanding your machineβs control capabilities or designing a new system, the Mitsubishi QY70 PLC ensures dependable signal output, efficient wiring, and solid integration with broader industrial control networks.
