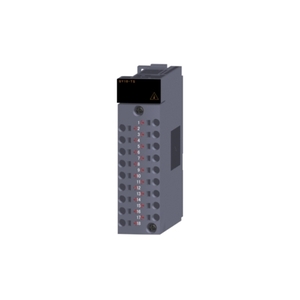

Mitsubishi QY10-TS - Programmable Logic Controller
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | QY10-TS |
Technical Specifications of Mitsubishi Programmable Logic Controller QY10-TS
| Specification | Value |
|---|---|
| Series | MELSEC-Q SERIES |
| Type | RELAY OUTPUT |
| Occupied I/O Points on PLC | 16 |
| Depth (mm) | 90 |
| Weight (kg) | 162 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,43 |
| Rated Load Voltage (VAC) | 240 |
The Mitsubishi QY10-TS PLC offers robust relay-based output control, supporting 16 digital outputs for handling a wide range of industrial actuators and load devices. Each output is relay-isolated, making the module ideal for switching both 24 VDC and 240 VAC loads safely and reliably. Built as part of the well-regarded MELSEC-Q Series, the QY10-TS integrates seamlessly into Mitsubishi PLC systems and works with GX Developer and GX Works for smooth programming and diagnostics.
The module’s form factor is practical for panel builders, with dimensions of 27.4 mm (W) × 98 mm (H) × 90 mm (D) and a weight of 162 g. Its screw terminal wiring ensures secure and easy connections during installation or maintenance. Consuming only 0.43 A internally and occupying 16 I/O points on the PLC, the QY10-TS is both energy-efficient and space-conscious. With relay output switching capability, it is ideal for controlling solenoids, lamps, contactors, and other AC/DC devices without direct electrical coupling to the PLC circuitry.
Backed by Mitsubishi Electric’s global reputation and field-proven reliability, the QY10-TS is trusted in process control, packaging, machinery automation, and HVAC panels. It balances safety, flexibility, and compatibility—making it a go-to choice for engineers requiring relay switching from a programmable logic controller.
The Mitsubishi QY10-TS PLC is well-suited for industrial applications where relay output control is required for both low-voltage DC and high-voltage AC devices. It’s commonly used in HVAC systems, control panels, and manufacturing machines that need reliable switching for indicators, alarms, motors, or contactors.
Its mechanical relay outputs offer safe electrical isolation between control logic and external loads, making it ideal for environments where electrical noise or surge protection is a concern. The module’s 240V AC and 24V DC rated load voltage range ensures versatility across automation projects, and its 16 output channels reduce the need for additional expansion modules.
If you’re building or upgrading an industrial panel that needs mixed-voltage load switching with electrical safety and long-term reliability, the Mitsubishi QY10-TS PLC delivers dependable relay performance in a compact, easy-to-integrate format.
