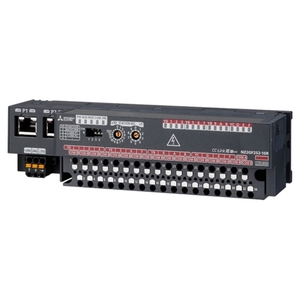

Mitsubishi NZ2GF2S2-16R - Programmable Logic Controller
The Mitsubishi NZ2GF2S2-16A Programmable Logic Controller (PLC) delivers high-speed, distributed control tailored for modern industrial automation systems. Designed for precision and reliability, this Mitsubishi PLC is ideal for machinery and process control applications.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | NZ2GF2S2-16R |
Technical Specifications of Mitsubishi Programmable Logic Controller NZ2GF2S2-16R
| Specification | Value |
|---|---|
| Series | CC-LINK IE FIELD NETWORK |
| Type | REMOTE RELAY OUTPUT |
| Depth (mm) | 68 |
| Weight (kg) | 0,45 |
| Width (mm) | 200 |
| Height (mm) | 50 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,19 |
| Rated Load Voltage (VAC) | 240 |
| Occupied Stations | 1 |
Engineered with Mitsubishi’s industrial-grade precision, the NZ2GF2S2-16R is part of the CC-Link IE Field Network series and delivers robust remote relay output capabilities. It operates on a DC 24V power supply and consumes just 0.19A of internal current, offering a highly efficient solution for decentralized control. With 16 integrated digital relay outputs, it supports rated load voltages of both 24VDC and 240VAC, ensuring flexible load handling for various automation scenarios. Compactly built with dimensions of 200mm (W) × 68mm (D) × 50mm (H) and a weight of 0.45 kg, the unit is ideal for cabinet mounting and tight enclosures. The use of spring clamp wiring enables faster installation and vibration resistance, ensuring long-term durability even in high-vibration environments. The IP20 protection rating supports safe operation in controlled industrial cabinets, and its temperature tolerance from -10°C to 40°C (with derating up to 60°C) enables use in demanding shop floor conditions. Mitsubishi’s attention to detail includes low power dissipation and strong diagnostic capability. The NZ2GF2S2-16R occupies just one network station and integrates seamlessly into existing systems using standardized industrial protocols. Its build quality, reliable relay switching, and ease of maintenance make it a preferred choice among automation professionals seeking to optimize system uptime and reduce wiring complexity.
The Mitsubishi NZ2GF2S2-16R PLC is commonly used in automation systems where centralized relay output is required but space and wiring efficiency matter. Applications include conveyor systems, automated packing lines, process plants, and distribution control cabinets. Its ability to interface with both AC and DC loads makes it ideal for controlling actuators, solenoids, indicator lights, and auxiliary contactors with one common unit. Indian maintenance engineers trust this PLC for its robust design, easy wiring, and dependable output switching. Junior engineers and students will also find the wiring logic easy to understand, thanks to the straightforward relay configuration and spring clamp terminals. This simplifies both new setups and service replacements in the field. For system integrators working with modular, scalable architectures, the NZ2GF2S2-16R offers a stable backbone that helps reduce communication errors, minimize panel footprint, and support fast deployment cycles. Whether it’s a brownfield upgrade or a new project rollout, Mitsubishi’s trusted engineering ensures this PLC meets industrial standards and delivers performance that scales.
