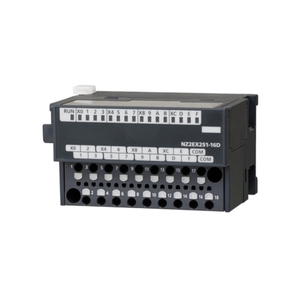

Mitsubishi NZ2EX2S1-16D - Programmable Logic Controller
The Mitsubishi NZ2EX2S1-16D is a compact and high-efficiency PLC module from the CC-LINK IE Field Network Series, designed to provide fast and stable remote DC input control in distributed industrial automation environments. This Programmable Logic Controller is ideal for scalable systems where space, reliability, and performance are essential.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | NZ2EX2S1-16D |
Technical Specifications of Mitsubishi Programmable Logic Controller NZ2EX2S1-16D
| Specification | Value |
|---|---|
| Series | CC-LINK IE FIELD NETWORK |
| Type | REMOTE DC INPUT |
| Integrated Digital Inputs | 16 |
| Depth (mm) | 68 |
| Weight (kg) | 0,19 |
| Width (mm) | 93 |
| Height (mm) | 50 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,02 |
| Rated Input Voltage (VDC) | 24 |
| Occupied Stations | 1 |
Built to support modern decentralized architectures, the Mitsubishi NZ2EX2S1-16D PLC is a remote DC input module equipped with 16 digital input channels. Operating on the advanced CC-LINK IE Field Network, it enables seamless, high-speed communication between field devices and central PLCs. This makes it an ideal choice for real-time signal acquisition in modular and distributed industrial systems. With a 24V DC rated input voltage and an ultra-low internal current consumption of just 0.02 A, it ensures energy-efficient operation even in continuous process environments.
The compact form factorโ68 mm depth, 93 mm width, and 50 mm heightโalong with its lightweight build of 0.19 kg, allows for quick and flexible installation in tight cabinet spaces or remote I/O panels. It features spring clamp wiring for secure and tool-less connections, improving maintenance speed and reducing wiring errors. With only 1 occupied station on the network, it ensures efficient bandwidth use across the CC-LINK IE topology.
The Mitsubishi NZ2EX2S1-16D is widely trusted in industries such as automotive, FMCG, semiconductor manufacturing, and intralogisticsโanywhere remote input collection is vital for automation accuracy and system scalability. Its reliability, communication performance, and compliance with global industrial standards make it a long-term investment for engineers building next-generation smart factories.
The Mitsubishi NZ2EX2S1-16D is used in a variety of automation applications where remote input data needs to be collected from multiple sensors spread across a machine or facility. These include limit switches, photoelectric sensors, push buttons, safety devices, and proximity detectors installed on conveyors, robotic arms, inspection machines, and packaging systems.
Its compatibility with CC-LINK IE Field Network ensures real-time communication and diagnostic feedback, reducing downtime and enhancing predictive maintenance strategies. The spring clamp terminals make it easier for plant technicians to connect or replace sensors without tools. The 24V DC input standard also guarantees compatibility with most industrial input devices, streamlining procurement and integration.
Whether you're an OEM designing scalable machines or an automation engineer retrofitting an existing line with decentralized control, the Mitsubishi NZ2EX2S1-16D PLC delivers the flexibility, speed, and reliability needed for Industry 4.0-ready systems.
