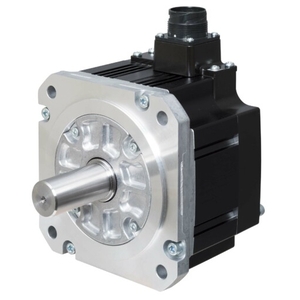

Mitsubishi HK-ST524WB - Servo Motors
Technical Specifications of Mitsubishi Servo Motors HK-ST524WB:
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HK-ST524WB |
Mitsubishi Servo Motors HK-ST524WB Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-J5 |
| Type | HK-ST |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 0,5 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 2,4 |
| Maximum Torque (Nm) | 7,2 |
| Rated Speed (rpm) | 2000 |
| Inertia (kg*cm2) | 8,15 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 4000 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 205 |
| Weight (kg) | 6 |
| Width (mm) | 130 |
| Height (mm) | 173,8 |
Talk to Our Engineer for Servo Motors HK-ST524WB with exclusive offers. Core System Specifications of HK-ST524WB are MELSERVO-J5 HK-ST at the best prices. This high-performance unit has a rated capacity of 0,5 kW, delivering 2,4 Nm of rated torque and a maximum torque of 7,2 Nm, ensuring precise motion control. With a rated speed of 2000 rpm and a maximum speed of 4000 rpm, it supports high-speed applications. The low inertia 8,15 allows for smooth and responsive operation. Designed with a AC current type, it features an advanced 26-BIT-bit encoder with 67108864 pulses per revolution, ensuring exceptional accuracy. The IP67 protection class safeguards against dust and water, making it reliable in industrial environments. Its compact build, with a depth of 205 mm, the width of 130 mm, and height of 173,8 mm, ensures easy installation. Don't Miss Out on a Quote for your requirement of Servo Motors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
