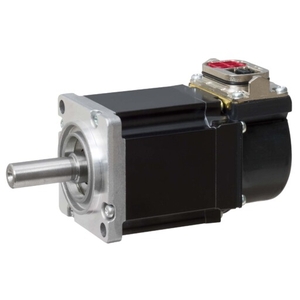

Mitsubishi HK-KT7M34WWS - Servo Motors
Technical Specifications of Mitsubishi Servo Motors HK-KT7M34WWS:
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HK-KT7M34WWS |
Mitsubishi Servo Motors HK-KT7M34WWS Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-J5 |
| Type | HK-KT |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 0,75 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 2,4 |
| Maximum Torque (Nm) | 8,4 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 1,37 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 6700 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 132,5 |
| Weight (kg) | 2,2 |
| Width (mm) | 80 |
| Height (mm) | 96,6 |
Give Us a Call for Servo Motors HK-KT7M34WWS at the lowest pricing. In-depth Technical Analysis of HK-KT7M34WWS feature MELSERVO-J5 HK-KT at the best prices. This high-performance unit has a rated capacity of 0,75 kW, delivering 2,4 Nm of rated torque and a maximum torque of 8,4 Nm, ensuring precise motion control. With a rated speed of 3000 rpm and a maximum speed of 6700 rpm, it supports high-speed applications. The low inertia 1,37 allows for smooth and responsive operation. Designed with a AC current type, it features an advanced 26-BIT-bit encoder with 67108864 pulses per revolution, ensuring exceptional accuracy. The IP67 protection class safeguards against dust and water, making it reliable in industrial environments. Its compact build, with a depth of 132,5 mm, the width of 80 mm, and height of 96,6 mm, ensures easy installation. Elevate Your Project with a Quote for your requirement of Servo Motors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
