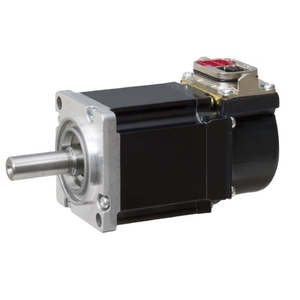

Mitsubishi HK-KT1034WBWS - Servo Motors
Technical Specifications of Mitsubishi Servo Motors HK-KT1034WBWS:
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HK-KT1034WBWS |
Mitsubishi Servo Motors HK-KT1034WBWS Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-J5 |
| Type | HK-KT |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 1 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 3,2 |
| Maximum Torque (Nm) | 11,1 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 1,81 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 6500 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 177 |
| Weight (kg) | 3,1 |
| Width (mm) | 80 |
| Height (mm) | 96,6 |
Obtain a Quote for Servo Motors HK-KT1034WBWS at economical prices. Specifications Overview for HK-KT1034WBWS reveals MELSERVO-J5 HK-KT at the best prices. This high-performance unit has a rated capacity of 1 kW, delivering 3,2 Nm of rated torque and a maximum torque of 11,1 Nm, ensuring precise motion control. With a rated speed of 3000 rpm and a maximum speed of 6500 rpm, it supports high-speed applications. The low inertia 1,81 allows for smooth and responsive operation. Designed with a AC current type, it features an advanced 26-BIT-bit encoder with 67108864 pulses per revolution, ensuring exceptional accuracy. The IP67 protection class safeguards against dust and water, making it reliable in industrial environments. Its compact build, with a depth of 177 mm, the width of 80 mm, and height of 96,6 mm, ensures easy installation. Take the First Step with a Quote for your requirement of Servo Motors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
