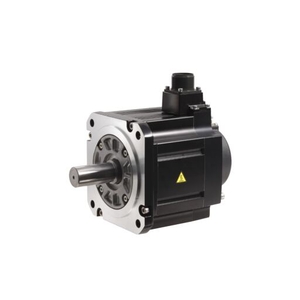

Mitsubishi HG-SR1524 - Servo Motors
The Mitsubishi HG-SR1524 Servo Motor delivers defined control performance with its 1.5 kW capacity and medium inertia design for industrial automation. The HG-SR1524 belongs to the Mitsubishi servo lineup and provides 7.2 Nm rated torque, 21.5 Nm maximum torque, 2000 rpm rated speed, 3000 rpm maximum speed, IP67 protection, a 22-bit encoder, and a straight shaft. It forms part of the Mitsubishi Servo Motors family and aligns with the MELSERVO-J4 Series for consistent operational performance.
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HG-SR1524 |
Mitsubishi Servo Motors HG-SR1524 Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-J4 |
| Type | HG-SR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 1,5 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 7,2 |
| Maximum Torque (Nm) | 21,5 |
| Rated Speed (rpm) | 2000 |
| Inertia (kg*cm2) | 16 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 3000 |
| Protection Class | IP67 |
| Encoder Type | 22-BIT |
| Depth (mm) | 201,5 |
| Weight (kg) | 7,3 |
| Width (mm) | 130 |
| Height (mm) | 177,5 |
The Mitsubishi HG-SR1524 Servo Motor supports stable industrial movement with 1.5 kW output, 7.2 Nm torque, and 2000 rpm speed. The HG-SR1524 belongs to the MELSERVO-J4 Series and includes IP67 protection, a 22-bit encoder, and a straight shaft configuration. This Servo Motor is suited for automation systems requiring predictable torque delivery and reliable speed control.
The Mitsubishi HG-SR1524 Servo Motor is used across conveyors, robotic systems, packaging machinery, and equipment requiring controlled medium-inertia response. Its balanced inertia profile enables smooth acceleration under varying loads, while the encoder resolution supports precise and repeatable positioning. The AC power compatibility allows deployment in systems requiring continuous-duty rotational accuracy.
The Mitsubishi HG-SR1524 Servo Motor combines torque performance, encoder precision, and durable construction to ensure reliable long-term operation. Integrated within the MELSERVO-J4 ecosystem, the HG-SR1524 delivers predictable rotational behavior in applications that rely on consistent motion output and stable feedback. Mitsubishiβs servo engineering quality makes this model suitable for demanding industrial automation environments.
