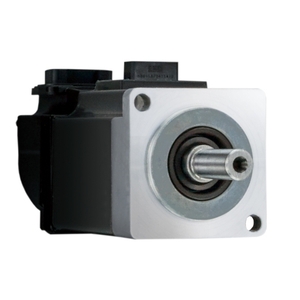

Mitsubishi HG-KNS73BK - Servo Motors
Technical Specifications of Mitsubishi Servo Motors HG-KNS73BK:
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HG-KNS73BK |
Mitsubishi Servo Motors HG-KNS73BK Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-JET |
| Type | HG-KNS |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,75 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 2,4 |
| Maximum Torque (Nm) | 7,2 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 1,39 |
| Brake | YES |
| Shaft Type | KEYWAY |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 6000 |
| Protection Class | IP65 |
| Encoder Type | 22-BIT |
| Depth (mm) | 192,3 |
| Weight (kg) | 3,8 |
| Width (mm) | 80 |
| Height (mm) | 96 |
Talk to Our Engineer for Servo Motors HG-KNS73BK with exclusive offers. Core System Specifications of HG-KNS73BK are MELSERVO-JET HG-KNS at the best prices. This high-performance unit has a rated capacity of 0,75 kW, delivering 2,4 Nm of rated torque and a maximum torque of 7,2 Nm, ensuring precise motion control. With a rated speed of 3000 rpm and a maximum speed of 6000 rpm, it supports high-speed applications. The low inertia 1,39 allows for smooth and responsive operation. Designed with a AC current type, it features an advanced 22-BIT-bit encoder with 4194304 pulses per revolution, ensuring exceptional accuracy. The IP65 protection class safeguards against dust and water, making it reliable in industrial environments. Its compact build, with a depth of 192,3 mm, the width of 80 mm, and height of 96 mm, ensures easy installation. Don't Miss Out on a Quote for your requirement of Servo Motors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
