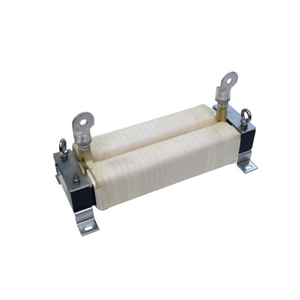

Mitsubishi FR-HEL-H220K - VFD Inverter
The Mitsubishi FR-HEL-H220K Variable Frequency Drive DC link choke supports 400 V three-phase DC operation for VFD Inverter systems. This FR-HEL-H220K VFD Inverter is a DC link choke type with 220 kW rated capacity, 240 W power loss, IP00 protection class, and 30 kg weight, designed for FR-series inverters including FR-A800 and FR-F800, and integrates with Mitsubishi Variable Frequency Drive installations in India.
| Brand | Mitsubishi |
| Product Type | VFD Inverter |
| Model Number | FR-HEL-H220K |
Mitsubishi FR-HEL-H220K VFD Inverter - Technical Specifications:
| Specification | Value |
|---|---|
| Type | DC LINK CHOKE |
| Applicable Inverter | FR-A800, FR-F800 |
| Power Loss (W) | 240 |
| Protection Class | IP00 |
| Depth (mm) | 240 |
| Weight (kg) | 30 |
| Width (mm) | 175 |
| Height (mm) | 405 |
| Rated Voltage (V) | 400 |
| Current Type | DC |
| Rated Capacity (kW) | 220 |
| Phases | 3 |
The FR-HEL-H220K VFD Inverter is a Mitsubishi FR-HEL-H220K Variable Frequency Drive DC link choke used to stabilize DC circuits in industrial automation systems. It operates at 400 V rated voltage, supports 220 kW capacity, features IP00 protection, and maintains 240 W power loss. This unit belongs to the FR series ecosystem and is deployed with Mitsubishi Variable Frequency Drive platforms in industrial environments.
The Mitsubishi FR-HEL-H220K Variable Frequency Drive is applied in conveyors, packaging lines, automated assembly systems, and high-capacity motor control panels. The DC link choke reduces current ripple, supports stable DC performance, and improves electrical operating conditions for VFD Inverter systems. This enables consistent operation in three-phase industrial power networks where controlled DC characteristics are required.
The FR-HEL-H220K remains a reliable Mitsubishi Variable Frequency Drive accessory for industrial automation use. Defined by its DC link choke function, 400 V rating, and compatibility with FR-series inverters, the Mitsubishi FR-HEL-H220K supports long-term system stability. Its electrical and mechanical characteristics make it suitable for continuous-duty applications requiring dependable DC performance within Variable Frequency Drive installations.
