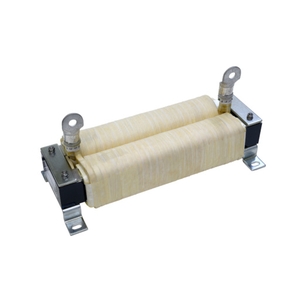

Mitsubishi FR-HEL-H160K - VFD Inverter
The Mitsubishi FR-HEL-H160K Variable Frequency Drive DC link choke supports a 160 kW rating with IP00 protection for FR-A800 and FR-F800 SERIES inverters. It provides stable performance with 170 W power loss, 205 mm depth, 175 mm width, 405 mm height, and a robust 28 kg construction suited for industrial DC bus filtering. Explore Mitsubishi, view Mitsubishi Variable Frequency Drives, and review the FR-A800 SERIES and FR-F800 SERIES.
| Brand | Mitsubishi |
| Product Type | VFD Inverter |
| Model Number | FR-HEL-H160K |
Mitsubishi FR-HEL-H160K VFD Inverter - Technical Specifications:
| Specification | Value |
|---|---|
| Type | DC LINK CHOKE |
| Applicable Inverter | FR-A800, FR-F800 |
| Power Loss (W) | 170 |
| Protection Class | IP00 |
| Depth (mm) | 205 |
| Weight (kg) | 28 |
| Width (mm) | 175 |
| Height (mm) | 405 |
| Rated Voltage (V) | 400 |
| Current Type | DC |
| Rated Capacity (kW) | 160 |
| Phases | 3 |
The Mitsubishi FR-HEL-H160K Variable Frequency Drive DC link choke is designed for FR-A800 SERIES and FR-F800 SERIES inverter systems. It incorporates a 160 kW capacity, 170 W power loss, IP00 protection class, and a 28 kg structure that supports demanding industrial automation requirements. These specifications ensure stable DC smoothing and reduced current ripple across three-phase installations.
The Mitsubishi FR-HEL-H160K Variable Frequency Drive component is suitable for conveyor systems, packaging equipment, automated processing lines, and high-capacity assembly machinery. Its DC link choke design improves drive reliability by minimizing harmonic distortion, stabilizing DC bus voltage, and enhancing overall inverter performance in continuous-duty environments where load variations occur frequently.
The Mitsubishi FR-HEL-H160K Variable Frequency Drive choke provides consistent filtering performance backed by defined electrical and mechanical characteristics. With 160 kW capacity, IP00 design, and robust construction, it supports long-term operational stability for FR-A800 SERIES and FR-F800 SERIES installations. Mitsubishiβs engineering reliability ensures dependable DC bus conditioning for large-scale industrial applications.
