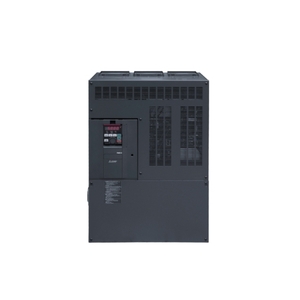

Mitsubishi FR-F840-03250-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-F840-03250-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-F840-03250-E2-60 |
Mitsubishi Variable Frequency Drive FR-F840-03250-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-F800 SERIES |
| Type | FR-F800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, iQSS, SLMP, MELSOFT/FA, MODBUS/TCP, BACNET/IP |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Protection Class | IP00 |
| Depth (mm) | 360 |
| Weight (kg) | 71 |
| Width (mm) | 465 |
| Height (mm) | 740 |
| Standby Power Consumption (W) | 75 |
| Rated Output Current LD (A) | 260 |
| Rated Motor Capacity LD (kW) | 132 |
| Power Loss LD (W) | 2800 |
| Rated Output Current SLD (A) | 325 |
| Rated Motor Capacity SLD (kW) | 160 |
| Power Loss SLD (W) | 3600 |
| Shipping Approvals | DNV,ABS |
Ask for the Pricing of Variable Frequency Drive FR-F840-03250-E2-60 at unbeatable prices. Detailed Specifications of FR-F840-03250-E2-60 features FR-F800-E INVERTER from the FR-F800 SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 323V, a maximum rated voltage of 500V, and a maximum permissible voltage of 550V. It is designed with an IP00 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 360 mm, a width of 465 mm, and a height of 740 mm, making it suitable for space-constrained installations. It weighs 71 kg, ensuring easy handling and installation. Now's the Time to Secure a Quote for your requirement of Variable Frequency Drive. We're committed to offering more favorable pricing and more responsive support than other Traders.
