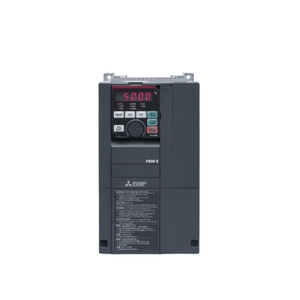

Mitsubishi FR-F840-00770-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-F840-00770-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-F840-00770-E2-60 |
Mitsubishi Variable Frequency Drive FR-F840-00770-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-F800 SERIES |
| Type | FR-F800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, iQSS, SLMP, MELSOFT/FA, MODBUS/TCP, BACNET/IP |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Protection Class | IP00 |
| Depth (mm) | 195 |
| Weight (kg) | 23 |
| Width (mm) | 325 |
| Height (mm) | 550 |
| Standby Power Consumption (W) | 26 |
| Rated Output Current LD (A) | 70 |
| Rated Motor Capacity LD (kW) | 37 |
| Power Loss LD (W) | 825 |
| Rated Output Current SLD (A) | 77 |
| Rated Motor Capacity SLD (kW) | 37 |
| Power Loss SLD (W) | 930 |
| Shipping Approvals | DNV,ABS |
The Mitsubishi FR-F840-00770-E2-60 Variable Frequency Drive delivers 37kW motor capacity, 70A output rating, vector control capability, and STO functional safety. This Mitsubishi FR-F840-00770-E2-60 model belongs to the FR-F800 SERIES and is used in industrial automation systems that require efficient speed regulation, motor protection, and smooth torque handling across induction and PM motor setups.
This drive is suitable for conveyors, pumps, compressors, packaging equipment, and general-purpose automation machinery. Its Ethernet communication, digital and analogue inputs, stable control algorithms, and robust thermal performance support reliable operation in continuous-duty industrial environments, ensuring predictable output and smooth application performance.
The Mitsubishi FR-F840-00770-E2-60 Variable Frequency Drive combines 37kW capacity, advanced vector control, STO safety, and Ethernet connectivity to ensure dependable motor operation. Supported by the FR-F800 SERIES architecture and Mitsubishi’s engineering stability, this model is well suited for users seeking long-term, consistent, and accurate motor control in demanding industrial applications.
