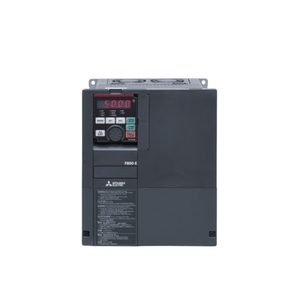

Mitsubishi FR-F840-00170-E2-60 Variable Frequency Drive
The Mitsubishi FR-F840-00170-E2-60 Variable Frequency Drive operates with 380–500V AC 3-phase input, providing 7.5kW motor capacity, 16A rated output current, and IP20 protection. Belonging to the Mitsubishi Variable Frequency Drive lineup under the Mitsubishi brand, it is part of the FR-F800 SERIES. The drive supports V/F and PM Sensorless Vector Control, includes a 5-digit LED display, and integrates Safe Torque Off (STO) for reliable motor safety and control.
| Brand | Mitsubishi |
| Product Type | VFD - Variable Frequency Drive |
| Product | FR-F840-00170-E2-60 |
Mitsubishi Variable Frequency Drive FR-F840-00170-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-F800 SERIES |
| Type | FR-F800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, MELSOFT/FA, iQSS, MODBUS/TCP, SLMP, BACNET/IP |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Protection Class | IP20 |
| Depth (mm) | 170 |
| Weight (kg) | 6,3 |
| Width (mm) | 220 |
| Height (mm) | 260 |
| Standby Power Consumption (W) | 20 |
| Rated Output Current LD (A) | 16 |
| Rated Motor Capacity LD (kW) | 7,5 |
| Power Loss LD (W) | 230 |
| Rated Output Current SLD (A) | 17 |
| Rated Motor Capacity SLD (kW) | 7,5 |
| Power Loss SLD (W) | 245 |
| Shipping Approvals | DNV,ABS |
The Mitsubishi FR-F840-00170-E2-60 Variable Frequency Drive, part of the FR-F800 SERIES, delivers efficient performance for industrial automation applications. It offers 7.5kW power capacity, supports 380–500V AC 3-phase input, and features V/F and PM Sensorless Vector Control for precise motor control. This Mitsubishi Variable Frequency Drive combines energy efficiency with reliable torque management, ensuring consistent performance in process environments.
The Mitsubishi FR-F840-00170-E2-60 is widely used in HVAC systems, pumps, conveyors, and factory automation setups. Its built-in communication options—such as CC-Link IE Field Network and Modbus/TCP—enable smooth integration with industrial control systems. With Safe Torque Off (STO) and a 5-digit LED display, it provides both operational safety and easy monitoring for maintenance engineers.
The Mitsubishi FR-F840-00170-E2-60 Variable Frequency Drive combines performance and dependability with 7.5kW rated output and IP20 protection. As a trusted product in the FR-F800 SERIES, it enhances efficiency and control for critical automation needs. Backed by Mitsubishi’s engineering excellence, it ensures smooth, safe, and energy-efficient operations across diverse industrial sectors in India.
