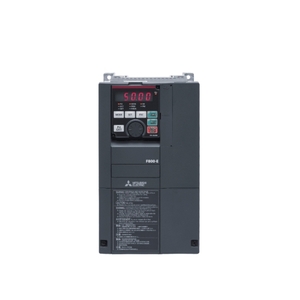

Mitsubishi FR-F840-00038-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-F840-00038-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-F840-00038-E2-60 |
Mitsubishi Variable Frequency Drive FR-F840-00038-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-F800 SERIES |
| Type | FR-F800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, MELSOFT/FA, iQSS, MODBUS/TCP, SLMP, BACNET/IP |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Protection Class | IP20 |
| Depth (mm) | 140 |
| Weight (kg) | 2,5 |
| Width (mm) | 150 |
| Height (mm) | 260 |
| Standby Power Consumption (W) | 19 |
| Rated Output Current LD (A) | 3,5 |
| Rated Motor Capacity LD (kW) | 1,5 |
| Power Loss LD (W) | 70 |
| Rated Output Current SLD (A) | 3,8 |
| Rated Motor Capacity SLD (kW) | 1,5 |
| Power Loss SLD (W) | 75 |
| Shipping Approvals | DNV,ABS |
The Mitsubishi FR-F840-00038-E2-60 Variable Frequency Drive offers 3.5A output, 1.5kW motor capacity, PM sensorless vector control, and IP20 protection. This Mitsubishi FR-F840-00038-E2-60 model belongs to the FR-F800 SERIES and is widely used across industrial automation systems where precise motor control, smooth operation, and energy-efficient performance are required for induction and PM motors.
This Variable Frequency Drive is suitable for conveyors, HVAC systems, blowers, small pumps, and general-purpose automation equipment. Its STO safety, LED monitoring, Ethernet communication, digital and analogue I/O, and spring-clamp terminals ensure stable integration, reliable speed regulation, and durable performance in continuous-duty industrial environments.
The Mitsubishi FR-F840-00038-E2-60 Variable Frequency Drive combines 1.5kW rating, 3.5A output, vector-based motor control, and STO functionality to deliver dependable and consistent operation. Supported by Mitsubishi’s engineering reliability and the FR-F800 SERIES platform, this model is well suited for users requiring accurate, safe, and long-term motor control in compact industrial systems.
