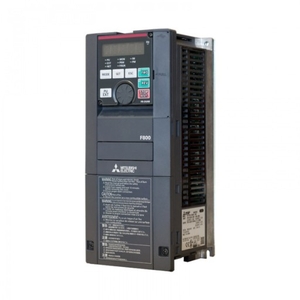

Mitsubishi FR-F820-00490-E3-N6 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-F820-00490-E3-N6:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-F820-00490-E3-N6 |
Mitsubishi Variable Frequency Drive FR-F820-00490-E3-N6 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-F800 SERIES |
| Type | FR-F800 PUMP AND FAN |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, V/F CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES (OFF ON INITIAL SETTINGS) |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK BASIC, iQSS, SLMP, MODBUS/TCP, MELSOFT/FA, BACNET/IP |
| Leakage Current (mA) | 22(EMC ON)/1(EMC OFF) |
| Protection Class | IP20 |
| Depth (mm) | 170 |
| Weight (kg) | 6,3 |
| Width (mm) | 220 |
| Height (mm) | 260 |
| Rated Output Current LD (A) | 45 |
| Rated Motor Capacity LD (kW) | 11 |
| Power Loss LD (W) | 480 |
| Rated Output Current SLD (A) | 49 |
| Rated Motor Capacity SLD (kW) | 11 |
| Power Loss SLD (W) | 525 |
Call us for Variable Frequency Drive FR-F820-00490-E3-N6 at the best rates. Technical Attributes of FR-F820-00490-E3-N6 are FR-F800 PUMP AND FAN from the FR-F800 SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 200V, a minimum permissible voltage of 170V, a maximum rated voltage of 240V, and a maximum permissible voltage of 264V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 170 mm, a width of 220 mm, and a height of 260 mm, making it suitable for space-constrained installations. It weighs 6,3 kg, ensuring easy handling and installation. Unlock Exclusive Pricing with a Quote for your requirement of Variable Frequency Drive. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
