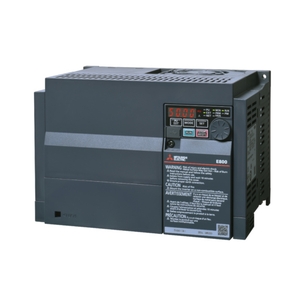

Mitsubishi FR-E840-0170-4-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E840-0170-4-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E840-0170-4-60 |
Mitsubishi Variable Frequency Drive FR-E840-0170-4-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 17 |
| Rated Motor Capacity ND (kW) | 7,5 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 197 |
| Protection Class | IP20 |
| Depth (mm) | 147 |
| Weight (kg) | 2,4 |
| Width (mm) | 220 |
| Height (mm) | 150 |
| Rated Output Current LD (A) | 23 |
| Rated Motor Capacity LD (kW) | 11 |
| Power Loss LD (W) | 299 |
The Mitsubishi FR-E840-0170-4-60 Variable Frequency Drive is part of the FR-E800 SERIES and built for efficient motor control in industrial automation. It provides 7.5kW motor capacity and 17A rated output current with flexible V/F and Sensorless Vector Control options. As a dependable Mitsubishi Variable Frequency Drive, it supports both induction and PM motors and ensures precise torque control for stable performance across demanding environments.
The Mitsubishi FR-E840-0170-4-60 is suitable for conveyor systems, pumps, compressors, and automated assembly lines. It integrates easily into existing automation setups through RS-485 MODBUS-RTU communication and offers Safe Torque Off (STO) functionality to meet safety standards. Its spring clamp terminals and LED interface ensure simple wiring and monitoring, making it ideal for industrial panels requiring compact, high-efficiency drives.
The Mitsubishi FR-E840-0170-4-60 Variable Frequency Drive delivers 7.5kW output power, IP20 protection, and consistent vector-controlled performance. As part of Mitsubishiβs reliable FR-E800 SERIES, it ensures long-term stability, motor protection, and seamless integration for industrial automation systems across India β combining performance, precision, and trusted brand assurance.
