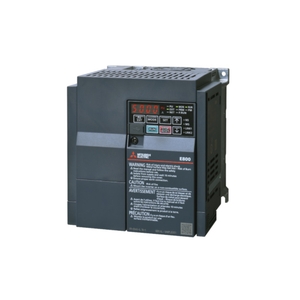

Mitsubishi FR-E840-0095SCEPB-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E840-0095SCEPB-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E840-0095SCEPB-60 |
Mitsubishi Variable Frequency Drive FR-E840-0095SCEPB-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800-ETH SAFETY CONTROL |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 298 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 9,5 |
| Rated Motor Capacity ND (kW) | 3,7 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | PROFINET, MODBUS/TCP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 113 |
| Protection Class | IP20 |
| Depth (mm) | 135 |
| Weight (kg) | 1,8 |
| Width (mm) | 140 |
| Height (mm) | 150 |
| Rated Output Current LD (A) | 11,1 |
| Rated Motor Capacity LD (kW) | 5,5 |
| Power Loss LD (W) | 137 |
Mail Us for your needs in Variable Frequency Drive FR-E840-0095SCEPB-60 with budget-friendly prices. The Main Technical Parameters of FR-E840-0095SCEPB-60 include FR-E800-ETH SAFETY CONTROL from the FR-E800 SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 298V, a maximum rated voltage of 480V, and a maximum permissible voltage of 528V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 135 mm, a width of 140 mm, and a height of 150 mm, making it suitable for space-constrained installations. It weighs 1,8 kg, ensuring easy handling and installation. Customize Your Experience with a Quote for your requirement off Variable Frequency Drive. Experience the difference with our competitive pricing and superior support over other Suppliers.
