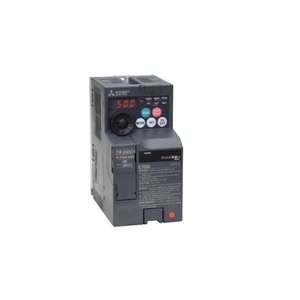

Mitsubishi Variable Frequency Drive FR-E740-300SC-ENE Technical Specifications:
Specification
Value
Series
FR-E700 SERIES
Type
FR-E700-ENE INVERTER
Minimum Rated Voltage (V)
380
Min. Permissible Voltage (V)
325
Maximum Rated Voltage (V)
480
Max. Permissible Voltage (V)
528
Current Type
AC
Phases
3
Rated Output Current ND (A)
30
Rated Motor Capacity ND (kW)
15
Control Method
V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type
INDUCTION MOTOR
Brake Chopper ED (%)
30
Integrated EMC Filter
NO
Safe Torque Off (STO)
YES
Regenerative (4Q)
NO
Integrated DC Choke
NO
Display
BUILT-IN
Display Type
3 DIGITS LED
PLC Function
NO
Integrated Digital Inputs
6
Digital Outputs (Transistor)
2
Digital Outputs (Relay)
1
Integrated Analogue Inputs
2
Integrated Analogue Outputs
1
IO Type of Terminal Block
SPRING CLAMP
Expandable
YES
RS-485
1
USB
1
Ethernet Port
1
Built-In Network
MODBUS/TCP, CC-Link IE Field Network Basic
Leakage Current (mA)
1
Power Loss ND (W)
640
Protection Class
IP20
Depth (mm)
196
Weight (kg)
6
Width (mm)
220
Height (mm)
260
Standby Power Consumption (W)
12,2
Send Your Inquiry for Variable Frequency Drive FR-E740-300SC-ENE with cost-effective solutions. Essential Technical Specs of FR-E740-300SC-ENE are FR-E700-ENE INVERTER from the FR-E700 SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 325V, a maximum rated voltage of 480V, and a maximum permissible voltage of 528V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 196 mm, a width of 220 mm, and a height of 260 mm, making it suitable for space-constrained installations. It weighs 6 kg, ensuring easy handling and installation. Capture the Best Deal with a Quote for your requirement of Variable Frequency Drive. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
