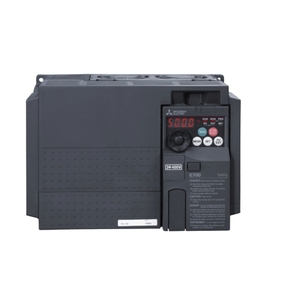

Mitsubishi FR-E740-120SC-EC Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E740-120SC-EC:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E740-120SC-EC |
Mitsubishi Variable Frequency Drive FR-E740-120SC-EC Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E700 SERIES |
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 12 |
| Rated Motor Capacity ND (kW) | 5,5 |
| Control Method | MAGNETIC FLUX VECTOR CONTROL, V/F CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 310 |
| Protection Class | IP20 |
| Depth (mm) | 153 |
| Weight (kg) | 3,2 |
| Width (mm) | 220 |
| Height (mm) | 150 |
| Standby Power Consumption (W) | 11,6 |
The Mitsubishi FR-E740-120SC-EC Variable Frequency Drive delivers 12A rated current, 5.5kW capacity, and Magnetic Flux Vector Control for precise operation in industrial settings. The Mitsubishi FR-E740-120SC-EC is part of the FR-E700 SERIES and supports RS-485 Modbus-RTU, USB connectivity, a compact 3-digit LED interface, and spring clamp terminals for secure and efficient electrical connections.
This drive is suitable for conveyors, automated packaging systems, small to medium machinery, and assembly-line equipment where stable speed and torque control are essential. Its consistent motor response and multi-input flexibility help integrate smoothly into PLC-driven automation and panel-mounted control designs.
The Mitsubishi FR-E740-120SC-EC Variable Frequency Drive ensures dependable three-phase operation with 12A performance and 5.5kW support for long-term industrial use. Mitsubishi maintains proven reliability through Modbus-RTU communication, clear visual status indication, and a robust FR-E700 SERIES structure that supports demanding automation environments.
