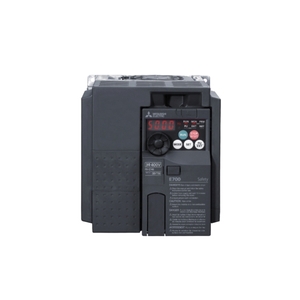

Mitsubishi FR-E740-040SC-EC Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E740-040SC-EC:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E740-040SC-EC |
Mitsubishi Variable Frequency Drive FR-E740-040SC-EC Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E700 SERIES |
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 4 |
| Rated Motor Capacity ND (kW) | 1,5 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 90 |
| Protection Class | IP20 |
| Depth (mm) | 141,5 |
| Weight (kg) | 1,9 |
| Width (mm) | 140 |
| Height (mm) | 150 |
| Standby Power Consumption (W) | 9,8 |
The Mitsubishi FR-E740-040SC-EC Variable Frequency Drive provides 1.5kW capacity, a 4A output rating, vector control capability, and STO functionality for safe and consistent induction motor operation. The Mitsubishi FR-E740-040SC-EC belongs to the FR-E700 SERIES and is widely used in industrial automation where stable motor performance and reliable speed control are required.
This drive is suitable for conveyors, light packaging equipment, assembly machines, and general-purpose automation. Its torque-stable V/F operation, efficient vector control, and MODBUS-RTU integration support smooth acceleration, dependable operation, and easy system connectivity across a wide range of industrial applications.
The Mitsubishi FR-E740-040SC-EC Variable Frequency Drive combines 1.5kW motor handling, 4A ND current, STO safety, and vector control to ensure dependable operation in continuous-duty environments. With its FR-E700 SERIES design, the drive delivers consistent performance, safe operation, and long-term reliability, making it a trusted choice for industrial motor control tasks.
