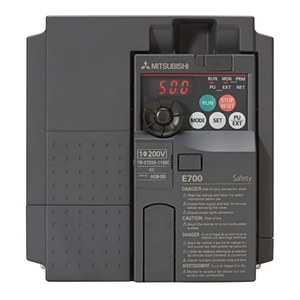

Mitsubishi FR-E720S-110SC-EC Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E720S-110SC-EC:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E720S-110SC-EC |
Mitsubishi Variable Frequency Drive FR-E720S-110SC-EC Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E700 SERIES |
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 11 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Control Method | MAGNETIC FLUX VECTOR CONTROL, V/F CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 115 |
| Protection Class | IP20 |
| Depth (mm) | 161,5 |
| Weight (kg) | 2 |
| Width (mm) | 140 |
| Height (mm) | 150 |
| Standby Power Consumption (W) | 6,4 |
The Mitsubishi FR-E720S-110SC-EC Variable Frequency Drive is a compact control solution designed for single-phase industrial applications. It delivers a 2.2kW motor capacity with a 11A output current and uses a 200β240V AC supply. Equipped with magnetic flux vector control and V/F control, this model is part of the FR-E700 SERIES and supports precise operation of induction motors in automation environments.
The Mitsubishi FR-E720S-110SC-EC Variable Frequency Drive is used in conveyors, packaging systems, light machinery, and assembly equipment. Its STO safety function, MODBUS-RTU communication, and spring-clamp I/O simplify integration with controllers and panels. The built-in LED display and structured terminals help ensure stable motor speed, reliable torque handling, and smooth acceleration for continuous-duty industrial processes.
The Mitsubishi FR-E720S-110SC-EC Variable Frequency Drive offers dependable control performance with its 2.2kW rating, 11A output, and 200β240V single-phase operation. Mitsubishiβs engineering ensures consistent operation, safe torque-off capability, and compatibility with standard automation networks. Its compact design, communication options, and straightforward wiring make it a trusted choice for durable and efficient motor control in industrial applications.
