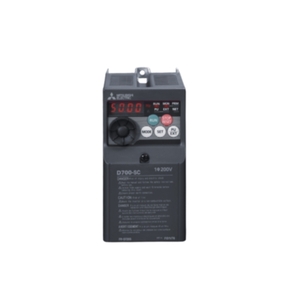

Mitsubishi FR-D720-0.4K Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-D720-0.4K:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-D720-0.4K |
Mitsubishi Variable Frequency Drive FR-D720-0.4K Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-D700 SERIES |
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 2,5 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 32 |
| Protection Class | IP20 |
| Depth (mm) | 112,5 |
| Weight (kg) | 0,8 |
| Width (mm) | 68 |
| Height (mm) | 128 |
| Standby Power Consumption (W) | 5,5-10,5 |
The Mitsubishi FR-D720-0.4K Variable Frequency Drive is a compact drive designed for industrial automation applications. This Mitsubishi model provides 0.4 kW output capacity, 2.5 A rated current, V/F control, and a 200β240 V operating range. It belongs to the FR-D700 SERIES and supports induction motors in various automation environments.
This VFD is commonly used in conveyors, packaging units, light assembly machines, and general-purpose industrial drives. Its stable motor control, consistent torque behavior, Modbus-RTU compatibility, and compact size enable reliable operation in continuous-duty environments where predictable speed regulation is essential.
The Mitsubishi FR-D720-0.4K Variable Frequency Drive delivers dependable performance with its IP20 protection, LED display, and efficient control functions. This Mitsubishi model fits industrial users who require stable speed control, safe torque features, and compatibility with standard AC induction motors. Its FR-D700 SERIES design ensures reliable operation and consistent performance in automation systems.
