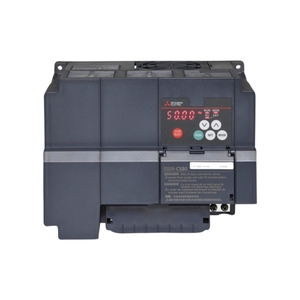

Mitsubishi FR-CS84-120-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-CS84-120-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-CS84-120-60 |
Mitsubishi Variable Frequency Drive FR-CS84-120-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-CS80 SERIES |
| Type | FR-CS84 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 12 |
| Rated Motor Capacity ND (kW) | 5,5 |
| Frequency Range (Hz) | 0,2β400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 140 |
| Protection Class | IP20 |
| Depth (mm) | 134 |
| Weight (kg) | 1,9 |
| Width (mm) | 197,5 |
| Height (mm) | 150 |
The Mitsubishi FR-CS84-120-60 Variable Frequency Drive belongs to the FR-CS80 SERIES and is built for compact, reliable motor control in industrial automation. It provides 5.5kW rated power with a 12A output current and supports Advanced Magnetic Flux Vector Control for stable performance. This Mitsubishi Variable Frequency Drive features a 4-digit LED display and spring clamp terminals for simple installation and monitoring.
The Mitsubishi FR-CS84-120-60 is ideal for conveyors, pumps, and compact machinery where space-saving and efficiency are essential. Its Modbus-RTU connectivity allows integration into automation networks, providing consistent control and reduced setup time. With smooth torque delivery and easy configuration, it ensures reliability across various manufacturing and processing systems.
The Mitsubishi FR-CS84-120-60 Variable Frequency Drive combines performance, simplicity, and quality within the FR-CS80 SERIES. Offering 5.5kW motor capacity and 380β480V AC input, itβs a trusted choice for OEMs and industrial users in India. Backed by Mitsubishi engineering, this model ensures dependable operation, durability, and energy-efficient motor control across demanding automation environments.
