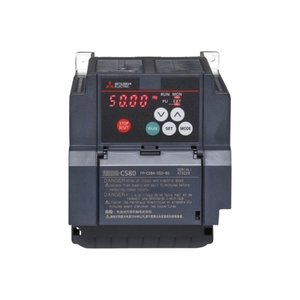

Mitsubishi FR-CS84-050-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-CS84-050-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-CS84-050-60 |
Mitsubishi Variable Frequency Drive FR-CS84-050-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-CS80 SERIES |
| Type | FR-CS84 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 5 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | ADVANCED MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-LU08 |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 75 |
| Protection Class | IP20 |
| Depth (mm) | 130 |
| Weight (kg) | 0,9 |
| Width (mm) | 108 |
| Height (mm) | 96 |
The Mitsubishi FR-CS84-050-60 Variable Frequency Drive belongs to the FR-CS80 SERIES and delivers efficient motor control for industrial automation. It offers 2.2kW motor capacity, 5A rated current, and a frequency range of 0.2–400Hz. As a reliable Mitsubishi Variable Frequency Drive, it uses Advanced Magnetic Flux Vector Control to maintain torque stability and smooth performance for induction motors.
The Mitsubishi FR-CS84-050-60 is widely used in conveyors, packaging machinery, pumps, and general automation systems. It integrates easily with control systems via RS-485 MODBUS-RTU communication and ensures secure wiring through spring clamp terminals. Its 4-digit LED display enables simple setup, making it ideal for compact, reliable industrial drive applications.
The Mitsubishi FR-CS84-050-60 Variable Frequency Drive combines 2.2kW output power with IP20 protection and precision control. As part of Mitsubishi’s trusted FR-CS80 SERIES, it ensures dependable operation, consistent motor performance, and long-term reliability — making it a preferred choice for automation systems across India.
