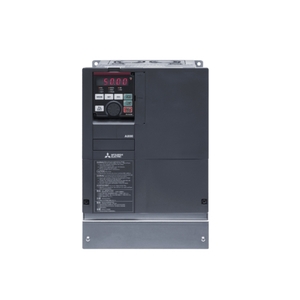

Mitsubishi FR-A860-00170-E1-N6 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A860-00170-E1-N6:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A860-00170-E1-N6 |
Mitsubishi Variable Frequency Drive FR-A860-00170-E1-N6 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 525 |
| Min. Permissible Voltage (V) | 472 |
| Maximum Rated Voltage (V) | 600 |
| Max. Permissible Voltage (V) | 660 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 12 |
| Rated Motor Capacity ND (kW) | 7,5 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD BASIC, MODBUS/TCP |
| Power Loss ND (W) | 185 |
| Protection Class | IP00 |
| Depth (mm) | 170 |
| Weight (kg) | 6,93 |
| Width (mm) | 220 |
| Height (mm) | 324 |
| Power Loss LD (W) | 250 |
| Power Loss SLD (W) | 270 |
| Shipping Approvals | NON-COMPLIANT |
| Rated Motor Capacity HD (kW) | 5,5 |
| Power Loss HD (W) | 140 |
Send Your Inquiry for Variable Frequency Drive FR-A860-00170-E1-N6 with cost-effective solutions. Essential Technical Specs of FR-A860-00170-E1-N6 are FR-A800-E INVERTER from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 525V, a minimum permissible voltage of 472V, a maximum rated voltage of 600V, and a maximum permissible voltage of 660V. It is designed with an IP00 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 170 mm, a width of 220 mm, and a height of 324 mm, making it suitable for space-constrained installations. It weighs 6,93 kg, ensuring easy handling and installation. Capture the Best Deal with a Quote for your requirement of Variable Frequency Drive. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
