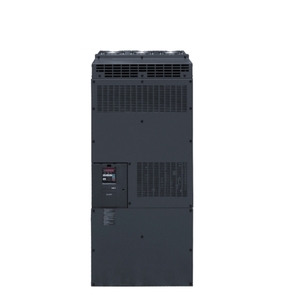

Mitsubishi FR-A842-08660-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A842-08660-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A842-08660-E2-60 |
Mitsubishi Variable Frequency Drive FR-A842-08660-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 430 |
| Min. Permissible Voltage (V) | 430 |
| Maximum Rated Voltage (V) | 780 |
| Max. Permissible Voltage (V) | 780 |
| Current Type | DC |
| Phases | 1 |
| Rated Output Current ND (A) | 683 |
| Rated Motor Capacity ND (kW) | 355 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC, CC-LINK IE FIELD NETWORK |
| Leakage Current (mA) | 2(DELTA) / 1(STAR) |
| Power Loss ND (W) | 5100 |
| Protection Class | IP00 |
| Depth (mm) | 440 |
| Weight (kg) | 163 |
| Width (mm) | 540 |
| Height (mm) | 1330 |
| Standby Power Consumption (W) | 80 |
| Rated Output Current LD (A) | 770 |
| Rated Motor Capacity LD (kW) | 400 |
| Power Loss LD (W) | 5800 |
| Rated Output Current SLD (A) | 866 |
| Rated Motor Capacity SLD (kW) | 450 |
| Power Loss SLD (W) | 6690 |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| Rated Output Current HD (A) | 610 |
| Rated Motor Capacity HD (kW) | 315 |
| Power Loss HD (W) | 4410 |
Get A Quote for Variable Frequency Drive FR-A842-08660-E2-60 at the best price. Here are the brief Technical Specifications of FR-A842-08660-E2-60 are FR-A800-E INVERTER from the FR-A SERIES at competitive prices. This DC inverter operates on 1-phase power with a minimum rated voltage of 430V, a minimum permissible voltage of 430V, a maximum rated voltage of 780V, and a maximum permissible voltage of 780V. It is designed with an IP00 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 440 mm, a width of 540 mm, and a height of 1330 mm, making it suitable for space-constrained installations. It weighs 163 kg, ensuring easy handling and installation. It's Time to get a Quote for your requirement of Variable Frequency Drive. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
