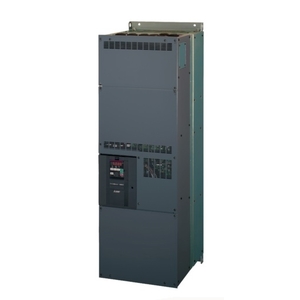

Mitsubishi FR-A840M-03630-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A840M-03630-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A840M-03630-E2-60 |
Mitsubishi Variable Frequency Drive FR-A840M-03630-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800 SLIM MODEL |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 293 |
| Rated Motor Capacity ND (kW) | 160 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, VECTOR CONTROL (WITH FR-A8AP), MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | YES |
| Integrated DC Choke | YES |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC, CC-LINK IE FIELD NETWORK |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss ND (W) | 3300 |
| Protection Class | IP20 |
| Depth (mm) | 390 |
| Weight (kg) | 148 |
| Width (mm) | 450 |
| Height (mm) | 1250 |
| Standby Power Consumption (W) | 78 |
| Rated Output Current SLD (A) | 363 |
| Rated Motor Capacity SLD (kW) | 200 |
| Power Loss SLD (W) | 4175 |
Ask for the Pricing of Variable Frequency Drive FR-A840M-03630-E2-60 at unbeatable prices. Detailed Specifications of FR-A840M-03630-E2-60 features FR-A800 SLIM MODEL from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 323V, a maximum rated voltage of 500V, and a maximum permissible voltage of 550V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 390 mm, a width of 450 mm, and a height of 1250 mm, making it suitable for space-constrained installations. It weighs 148 kg, ensuring easy handling and installation. Now's the Time to Secure a Quote for your requirement of Variable Frequency Drive. We're committed to offering more favorable pricing and more responsive support than other Traders.
