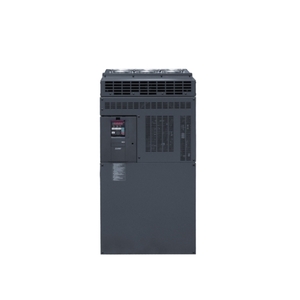

Mitsubishi Variable Frequency Drive FR-A840-05470-E2-60 Technical Specifications:
Specification
Value
Series
FR-A SERIES
Type
FR-A800-E INVERTER
Minimum Rated Voltage (V)
380
Min. Permissible Voltage (V)
323
Maximum Rated Voltage (V)
500
Max. Permissible Voltage (V)
550
Current Type
AC
Phases
3
Rated Output Current ND (A)
432
Rated Motor Capacity ND (kW)
220
Frequency Range (Hz)
0,2β590
Control Method
VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type
INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter
YES
Safe Torque Off (STO)
YES
Regenerative (4Q)
NO
Integrated DC Choke
NO
Display
FR-DU08
Display Type
5 DIGITS LED (12 SEGMENT)
PLC Function
YES
Program Memory
6K
Program Memory Unit
STEPS
Integrated Digital Inputs
12
Digital Outputs (Transistor)
5
Digital Outputs (Relay)
2
Integrated Analogue Inputs
3
Integrated Analogue Outputs
2
IO Type of Terminal Block
SPRING CLAMP
Expandable
YES
RS-485
OPTIONAL
USB
1+1 MINI
Ethernet Port
1
Built-In Network
CC-LINK IE FIELD NETWORK, CC-LINK IE FIELD NETWORK BASIC, MODBUS/TCP
Leakage Current (mA)
35(DELTA) / 2(STAR)
Power Loss ND (W)
4550
Protection Class
IP00
Depth (mm)
380
Weight (kg)
166
Width (mm)
680
Height (mm)
1010
Standby Power Consumption (W)
125
Rated Output Current LD (A)
481
Rated Motor Capacity LD (kW)
250
Power Loss LD (W)
5100
Rated Output Current SLD (A)
547
Rated Motor Capacity SLD (kW)
280
Power Loss SLD (W)
5850
Shipping Approvals
ABS,BV,DNV GL,LR,NK
Rated Output Current HD (A)
361
Rated Motor Capacity HD (kW)
185
Power Loss HD (W)
3700
Give Us a Call for Variable Frequency Drive FR-A840-05470-E2-60 at the lowest pricing. In-depth Technical Analysis of FR-A840-05470-E2-60 feature FR-A800-E INVERTER from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 323V, a maximum rated voltage of 500V, and a maximum permissible voltage of 550V. It is designed with an IP00 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 380 mm, a width of 680 mm, and a height of 1010 mm, making it suitable for space-constrained installations. It weighs 166 kg, ensuring easy handling and installation. Elevate Your Project with a Quote for your requirement of Variable Frequency Drive. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
