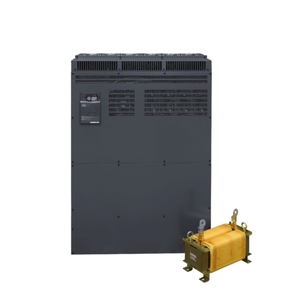

Mitsubishi FR-A770-560K-79 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A770-560K-79:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A770-560K-79 |
Mitsubishi Variable Frequency Drive FR-A770-560K-79 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A700 SERIES |
| Type | FR-A700 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 600 |
| Min. Permissible Voltage (V) | 540 |
| Maximum Rated Voltage (V) | 690 |
| Max. Permissible Voltage (V) | 759 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 611 |
| Rated Motor Capacity ND (kW) | 560 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Power Loss ND (W) | 12500 |
| Protection Class | IP00 |
| Depth (mm) | 440 |
| Weight (kg) | 380 |
| Width (mm) | 995 |
| Height (mm) | 1580 |
Get A Quote for Variable Frequency Drive FR-A770-560K-79 at the best price. Here are the brief Technical Specifications of FR-A770-560K-79 are FR-A700 ADVANCED INVERTER from the FR-A700 SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 600V, a minimum permissible voltage of 540V, a maximum rated voltage of 690V, and a maximum permissible voltage of 759V. It is designed with an IP00 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 440 mm, a width of 995 mm, and a height of 1580 mm, making it suitable for space-constrained installations. It weighs 380 kg, ensuring easy handling and installation. It's Time to get a Quote for your requirement of Variable Frequency Drive. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
