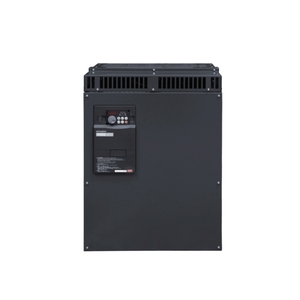

Mitsubishi FR-A741-18.5K Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A741-18.5K:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A741-18.5K |
Mitsubishi Variable Frequency Drive FR-A741-18.5K Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A741 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 38 |
| Rated Motor Capacity ND (kW) | 18,5 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | YES |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 1100 |
| Protection Class | IP00 |
| Depth (mm) | 320 |
| Weight (kg) | 48 |
| Width (mm) | 360 |
| Height (mm) | 600 |
Get A Quote for Variable Frequency Drive FR-A741-18.5K at the best price. Here are the brief Technical Specifications of FR-A741-18.5K are FR-A741 INVERTER from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 323V, a maximum rated voltage of 480V, and a maximum permissible voltage of 528V. It is designed with an IP00 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 320 mm, a width of 360 mm, and a height of 600 mm, making it suitable for space-constrained installations. It weighs 48 kg, ensuring easy handling and installation. It's Time to get a Quote for your requirement of Variable Frequency Drive. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
