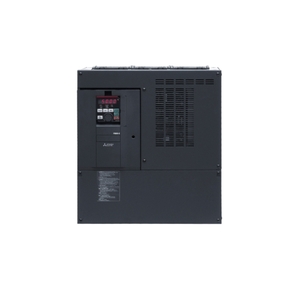

Maintenance teams planning replacements for MITSUBISHIELECTRIC-FR-A741-15K frequently review Schneider VFD, Mitsubishi HMI and Mitsubishi Mitsubishielectric Fr E720 3 7K to prevent downtime, checking availability and compatibility with existing systems.

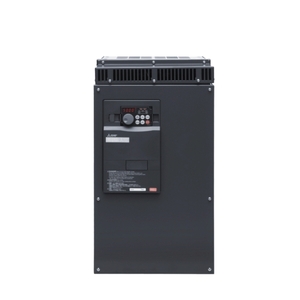

Mitsubishi FR-A741-15K Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A741-15K:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A741-15K |
Mitsubishi Variable Frequency Drive FR-A741-15K Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A741 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 31 |
| Rated Motor Capacity ND (kW) | 15 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | YES |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 860 |
| Protection Class | IP00 |
| Depth (mm) | 294 |
| Weight (kg) | 40 |
| Width (mm) | 300 |
| Height (mm) | 600 |
| Standby Power Consumption (W) | 12,2 |
The Mitsubishi FR-A741-15K Variable Frequency Drive provides precise control with a 31A rated output, a 15kW motor capacity, and a 380–480V AC operating range. Its vector control ensures stable torque and speed regulation for induction motors. As part of the FR-A SERIES, this model supports regenerative operation, integrated PLC functionality, and clear status monitoring through the FR-DU07 LED display, making it suitable for industrial automation tasks requiring consistent motor performance.
The Mitsubishi FR-A741-15K Variable Frequency Drive is well suited for conveyors, heavy packaging lines, material handling systems, and automated processing machines. Regenerative braking enables efficient deceleration, while multiple digital inputs and RS-485 communication support integration with industrial control panels. Its robust structure and IP00 build allow continuous-duty operation in environments needing reliable torque delivery and predictable motor behavior.
The Mitsubishi FR-A741-15K Variable Frequency Drive offers dependable performance through its 31A output, vector control, and stable 380–480V supply handling. Mitsubishi ensures long-term reliability, accurate motor regulation, and effective energy recovery through regenerative operation. With PLC features, MODBUS-RTU networking, and structured I/O, this drive is a trusted choice for industries requiring consistent and efficient motor control under demanding operating conditions.
