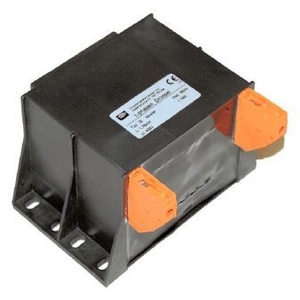

Mitsubishi FFR-HEL-H18.5K-E1 - VFD Inverter
Mitsubishi FFR-HEL-H18.5K-E1 VFD Inverter is a DC link choke rated 18.5 kW, 400 V, 34 A for drives. This Mitsubishi unit supports Mitsubishi Variable Frequency Drive systems and provides DC current type, 1.76 mH inductance, IP20 protection, and compact dimensions of 128 Γ 133.2 Γ 85 mm with 4 kg weight.
| Brand | Mitsubishi |
| Product Type | VFD Inverter |
| Model Number | FFR-HEL-H18.5K-E1 |
Mitsubishi FFR-HEL-H18.5K-E1 VFD Inverter - Technical Specifications:
| Specification | Value |
|---|---|
| Type | DC LINK CHOKE |
| Applicable Inverter | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Current (A) (fa_ger_79) | 34 |
| Power Loss (W) | 34,6 |
| Protection Class | IP20 |
| Depth (mm) | 128 |
| Weight (kg) | 4 |
| Width (mm) | 133,2 |
| Height (mm) | 85 |
| Rated Voltage (V) | 400 |
| Current Type | DC |
| Inductance (mH) | 1,76 |
| Rated Capacity (kW) | 18,5 |
The FFR-HEL-H18.5K-E1 VFD Inverter is a Mitsubishi DC link choke designed for Variable Frequency Drive applications in industrial automation. The FFR-HEL-H18.5K-E1 VFD Inverter operates at 400 V, supports 18.5 kW rated capacity, and handles 34 A current using DC current type. It is used where controlled DC bus performance is required for stable inverter operation.
In automation systems, DC link chokes are commonly applied in conveyors, packaging machines, automated assembly lines, and motor control panels. The FFR-HEL-H18.5K-E1 VFD Inverter helps reduce current ripple, stabilize DC voltage, and support consistent drive performance during load fluctuations. This contributes to predictable motor control and reliable operation in continuous industrial processes.
The Mitsubishi FFR-HEL-H18.5K-E1 VFD Inverter is defined by its electrical ratings, inductance value, and compact mechanical design. Mitsubishi manufacturing standards ensure dependable integration with industrial Variable Frequency Drive systems. With specified protection level and DC link characteristics, the FFR-HEL-H18.5K-E1 is suitable for long-term use in industrial automation environments.
