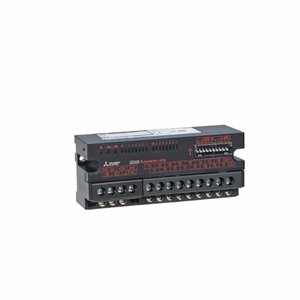

Mitsubishi AJ65SBTB1-16TE - Programmable Logic Controller

The Mitsubishi AJ65SBTB1-16TE is a compact Programmable Logic Controller (PLC) module featuring remote transistor output technology from the robust CC-Link series. Engineered for distributed I/O systems, this PLC delivers high-speed and reliable output control for modern industrial automation setups.
Spec | Value |
---|---|
Brand | Mitsubishi |
Product Type | PLC(Programmable Logic Controller) |
Product | AJ65SBTB1-16TE |
Technical Specifications of Mitsubishi Programmable Logic Controller AJ65SBTB1-16TE
Specification | Value |
---|---|
Series | CC-LINK |
Type | REMOTE TRANSISTOR OUTPUT |
Depth (mm) | 40 |
Weight (kg) | 0,18 |
Width (mm) | 118 |
Height (mm) | 50 |
Power Supply (V) | 24 |
Current Type | DC |
Integrated Digital Outputs | 16 |
Output Type | TRANSISTOR |
Output Logic | SOURCE |
Rated Load Voltage (VDC) | 12-24 |
Wiring | SCREW |
Int. Current Consumption (A) | 0,05 |
Occupied Stations | 1 |
The Mitsubishi AJ65SBTB1-16TE PLC is purpose-built for precise digital output control in distributed field networks. As a CC-Link remote output module, it integrates smoothly into existing Mitsubishi automation environments, offering 16 integrated digital outputs with a transistor-type switching mechanism. With source logic, the unit ensures reliable signal delivery to PNP-compatible loads, reducing noise interference and contact wear.
Designed for compact control panels, the unit measures only 40 mm in depth, 118 mm in width, and 50 mm in height, while weighing just 0.18 kg. The 24V DC power supply ensures stable operation across harsh industrial conditions. It supports 12–24 VDC rated load voltage, making it suitable for a wide range of end devices such as solenoids, relays, lamps, and more. The use of screw-type wiring enhances connection reliability and makes it easier for technicians to install or service.
The AJ65SBTB1-16TE consumes minimal current at just 0.05 A internally, making it highly energy-efficient while occupying only a single station on the network. Its fast response time, compact profile, and seamless compatibility with Mitsubishi’s CC-Link protocol make it a trusted choice in packaging lines, material handling systems, and machine control units. For further configuration and documentation, you can refer to the official Mitsubishi AJ65SBTB1-16TE product page.
The Mitsubishi AJ65SBTB1-16TE PLC is ideal for distributed control applications where space is limited, and output reliability is critical. It is widely used in smart conveyors, modular machine tools, and decentralized automation systems.
Thanks to its transistor output with source logic, this PLC ensures consistent performance in PNP-type load systems—commonly found in sensors, actuators, and control relays. The CC-Link compatibility allows engineers to deploy this unit in large-scale fieldbus networks without sacrificing speed or accuracy. Screw terminal wiring also reduces installation time while providing solid, vibration-resistant connections.
Whether you are an Indian maintenance engineer troubleshooting a line or an OEM designing scalable systems, the AJ65SBTB1-16TE offers a smart, reliable, and compact automation solution. By combining precision control, network flexibility, and Mitsubishi’s trusted build quality, this PLC continues to be a dependable asset in factory automation.
