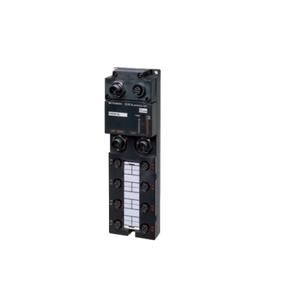

Mitsubishi AJ65FBTA4-16DE - Programmable Logic Controller
The Mitsubishi AJ65FBTA4-16DE Programmable Logic Controller (PLC) is a high-performance digital I/O module built for advanced automation tasks. This Mitsubishi PLC supports fast control cycles and suits engineers designing precision-driven industrial systems.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | AJ65FBTA4-16DE |
Technical Specifications of Mitsubishi Programmable Logic Controller AJ65FBTA4-16DE
| Specification | Value |
|---|---|
| Series | CC-LINK |
| Type | REMOTE DC INPUT |
| Integrated Digital Inputs | 16 |
| Depth (mm) | 48 |
| Weight (kg) | 0,36 |
| Width (mm) | 60 |
| Height (mm) | 200 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,04 |
| Rated Input Voltage (VDC) | 24 |
| Occupied Stations | 1 |
Built for high-performance industrial control, the Mitsubishi AJ65FBTA4-16DE offers 16 digital input channels with a rated input voltage of 24 VDC and low internal current consumption of just 0.04 A. Its 24V DC power supply and screw terminal wiring make it both rugged and installer-friendly, reducing setup time in panel integration. The module communicates reliably with the central controller via its RJ45 port, supporting CC-Link architecture for high-speed and stable data transmission across distributed nodes.
Designed for use in harsh conditions, the AJ65FBTA4-16DE PLC operates flawlessly between -10Β°C and 40Β°C, and remains functional up to 60Β°C with minor derating. It meets IEC 60068-2-6 vibration resistance standards, includes built-in EMC filtering, and features an IP20-rated enclosureβensuring long-term durability in noisy, high-motion industrial settings. Its cabinet-mountable form factor (200 mm height, 60 mm width, 48 mm depth) and lightweight build of just 0.36 kg allow for space-saving installation in dense control panels.
The module supports 2-wire RS 485 communication and operates efficiently with a maximum output frequency of 4 kHz. Certified for Pollution Degree 2 environments and altitude ranges up to 2000 meters, this PLC model is suitable for applications across manufacturing, automotive, and packaging sectors. Trusted for reliability, compactness, and fast response, the Mitsubishi AJ65FBTA4-16DE PLC is a preferred choice among OEMs and system integrators.
The Mitsubishi AJ65FBTA4-16DE PLC is ideally suited for industrial applications that require rapid and accurate input detection. These include safety interlocks, sensor monitoring, pushbutton feedback systems, and digital signal status tracking across assembly lines, conveyor systems, and material handling stations.
Maintenance engineers benefit from its straightforward screw wiring design, which makes the installation and troubleshooting process easy and efficient. The moduleβs compact footprint allows it to fit inside even tight control cabinets without compromising on reliability or wiring access.
If your automation project requires precise, 24V DC digital input monitoring in tough industrial environments, the Mitsubishi AJ65FBTA4-16DE PLC delivers performance you can count on. With its stable communication, EMC protection, and compatibility with CC-Link systems, it is engineered to meet the demands of high-uptime production environments.
