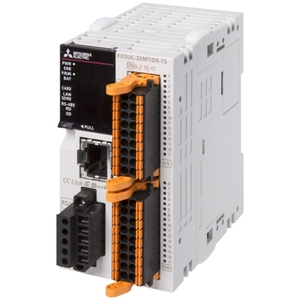

FX5UC-32MT/DSS-TS - Mitsubishi Programmable Controllers Melsec
Mitsubishi FX5UC-32MT/DSS-TS PLC is a compact programmable controller with 24V DC supply, 64K steps memory, transistor outputs and Ethernet. This Mitsubishi PLC from the FX Series provides 16 digital inputs, 16 transistor outputs, expandable I/O up to 512 points, low 5 W power consumption, RS-485 communication, 34 ns processing, and operation up to 55Β°C.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX5UC-32MT/DSS-TS |
FX5UC-32MT/DSS-TS Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX5UC |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 5 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Max. Ambient Temperature (Β°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Depth (mm) | 93,7 |
| Weight (kg) | 0,25 |
| Width (mm) | 48,1 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
The Mitsubishi FX5UC-32MT/DSS-TS PLC is a programmable logic controller designed for compact control panels in industrial automation systems. This Mitsubishi PLC operates on a 24V DC power supply and includes 64K steps flash program memory for stable control execution. It features 16 digital inputs and 16 transistor outputs with source logic. The FX5UC-32MT/DSS-TS PLC belongs to the FX Series and supports Ethernet-based communication.
In industrial environments, the Mitsubishi FX5UC-32MT/DSS-TS PLC is used in conveyors, compact packaging machines, assembly workstations, and decentralized automation systems. Its narrow width allows installation in space-constrained panels, while transistor outputs provide consistent switching for sensors, actuators, and control devices. Ethernet and RS-485 interfaces support communication with I/O, and monitoring systems used in production lines.
The Mitsubishi FX5UC-32MT/DSS-TS PLC combines compact dimensions, defined memory capacity, and low power consumption into a single control unit. As part of Mitsubishiβs FX Series PLC range, it aligns with established industrial standards and certifications. This PLC is suitable for continuous industrial operation where space efficiency, predictable performance, and stable control behavior are required across automation applications.
