FX5U-80MT/ES - Mitsubishi Programmable Controllers Melsec
Mitsubishi FX5U-80MT/ES PLC operates on 100–240V AC, provides 64K steps memory, forty inputs, forty transistor outputs for automation. Manufactured by Mitsubishi, this Mitsubishi PLC belongs to the FX Series and supports FLASH program memory, 256 local I/O points, expandable architecture, SINK transistor output logic, 34 ns LD cycle time, Ethernet and RS-485 communication, and operation up to 55°C.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX5U-80MT/ES |
FX5U-80MT/ES Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX5U |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 40 |
| Integrated Digital Outputs | 40 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 45 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Depth (mm) | 83 |
| Weight (kg) | 1,2 |
| Width (mm) | 285 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |

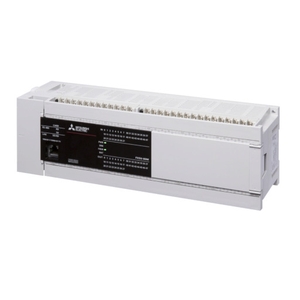

The Mitsubishi FX5U-80MT/ES PLC is a programmable logic controller designed for industrial automation control systems. This Mitsubishi FX5U-80MT/ES PLC operates on 100–240V AC power and provides 64K steps program memory stored in FLASH for stable logic execution. It integrates forty digital inputs, forty transistor outputs, and two analogue inputs, supporting up to 256 local I/O points. The controller belongs to the Mitsubishi FX Series within the MELSEC iQ-F platform.
In industrial automation environments, the Mitsubishi FX5U-80MT/ES PLC is used in conveyors, packaging machines, automated assembly lines, and production control panels. Its high I/O capacity enables control of multiple sensors and actuators, while fast instruction execution supports precise sequence handling. Integrated Ethernet and RS-485 ports allow communication with automation networks, supporting scalable and connected control architectures.
The Mitsubishi FX5U-80MT/ES PLC delivers reliable control performance within defined electrical and environmental limits. With FLASH-based memory, controlled power consumption, and standardized expansion capability, it supports long-term panel-mounted operation. As part of the Mitsubishi FX Series, this PLC reflects Mitsubishi’s established engineering standards and is suitable for industrial automation applications across India.
