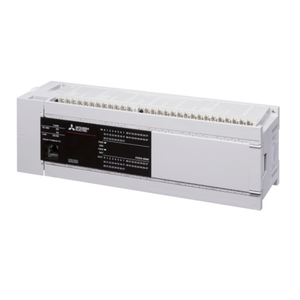

FX5U-80MT/DSS - Mitsubishi Programmable Controllers Melsec

The FX5U-80MT/DSS is engineered to handle complex automation challenges with ease. It features a 24V DC power supply and supports rapid instruction execution with a cycle time of just 34 ns for both LD and MOV commands. Backed by 64K STEPS of FLASH program memory, this Mitsubishi PLC ensures long-term data retention and high-speed logic execution for time-critical industrial processes. Its robust configuration includes 40 digital inputs, 40 digital outputs, and 2 analog inputs, giving it the versatility needed for wide-ranging factory floor applications.

Designed for scalability, the FX5U-80MT/DSS supports up to 256 local I/O points and a total of 512 local + remote I/O points, accommodating system expansion without complexity. Its TRANSISTOR output type with SOURCE logic provides reliable, noise-resistant switching ideal for fast-acting control environments. Equipped with both an Ethernet port and RS-485 interface, it allows smooth integration with modern industrial networks and HMI/SCADA systems. An optional buffer battery enhances system resilience in power loss conditions.

The controller is built to endure with IP10 protection, an operating temperature tolerance up to 55°C, and compact dimensions of 285 mm width, 90 mm height, and 83 mm depth. At just 1.2 kg, it fits easily into standard control panels. Certified with CE, UL/cUL, and UKCA standards, and approved by marine authorities such as ABS, DNV GL, BV, and RINA, the FX5U-80MT/DSS is trusted globally for critical operations. For more detailed documentation and specifications, visit the official Mitsubishi product page.

The Mitsubishi FX5U-80MT/DSS is ideal for automation systems that demand precise control, real-time data processing, and seamless connectivity. It is widely used in packaging machines, printing lines, textile machinery, and smart conveyor systems. Thanks to its large I/O capacity and built-in communication ports, this PLC is suitable for medium to large-scale machines requiring complex logic control and distributed automation setups.

In Indian manufacturing plants, maintenance engineers appreciate the FX5U series for its intuitive programming with GX Works3, quick deployment, and diagnostic features that reduce downtime. The fast scan time of 34 ns enables the controller to handle time-sensitive operations such as encoder feedback, timer-based sequences, or high-speed counting, while the built-in analog inputs allow it to manage temperature, pressure, or level sensors directly.

For engineering students and automation labs, the FX5U-80MT/DSS serves as a future-proof learning platform that aligns with real industry standards. Its combination of digital and analog control, network flexibility, and scalability makes it a valuable asset for both training and real-world application. Whether you're automating a complex process or upgrading your factory floor, this PLC delivers Mitsubishi's reliability, performance, and ease of use—ensuring smooth operations across the automation lifecycle.
