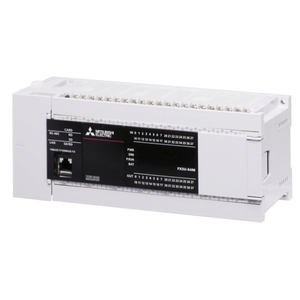

FX5U-64MT/DS - Mitsubishi Programmable Controllers Melsec
Technical Specifications of Mitsubishi Mitsubishi Programmable Controllers Melsec FX5U-64MT/DS:
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX5U-64MT/DS |
FX5U-64MT/DS Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX5U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 32 |
| Integrated Digital Outputs | 32 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 40 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Max. Ambient Temperature (Β°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Depth (mm) | 83 |
| Weight (kg) | 1 |
| Width (mm) | 220 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
Engineered to support demanding industrial tasks, the FX5U-64MT/DS delivers a nominal output current of 2.4 A with a switching frequency of 4 kHz, ensuring efficient control response and system reliability. It features a 1 RJ45 connector and 2-wire RS 485 interface for streamlined communication. Designed for rugged environments, this Mitsubishi PLC operates between -10Β°C to 60Β°C with built-in current derating above 40Β°C, and complies with IEC 60068-2-6 vibration resistance standards.
With a maximum output voltage of 240 V and a flexible output frequency range from 0.5 to 400 Hz, the FX5U-64MT/DS excels in precise motor control applications. Its IP20 protection, EMC filter integration, and compact 143 mm height make it suitable for cabinet mounting in space-constrained environments. Trusted for long-term performance and quick deployment, this Programmable Controller is a top-tier solution in Mitsubishiβs FX5U series. For more technical insights, visit the official Mitsubishi FX5U-64MT/DS product page.
