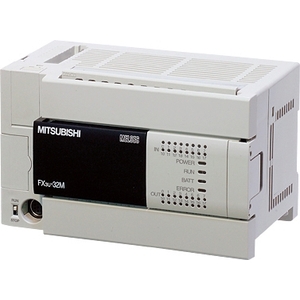

FX3U-32MS/ES - Mitsubishi Programmable Controllers Melsec
Technical Specifications of Mitsubishi Mitsubishi Programmable Controllers Melsec FX3U-32MS/ES:
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX3U-32MS/ES |
FX3U-32MS/ES Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX3U |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | RAM |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | TRIAC |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 384 |
| Expandable | YES |
| Cycle Time LD (ns) | 65 |
| Cycle Time MOV (ns) | 642 |
| Power Consumption (W) | 35 |
| Buffer Battery | YES |
| Protection Class | IP10 |
| Max. Ambient Temperature (Β°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 86 |
| Weight (kg) | 0,65 |
| Width (mm) | 150 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
