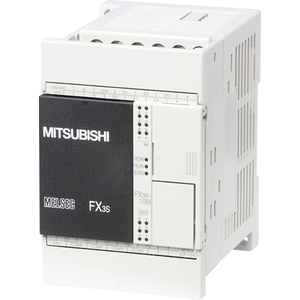

FX3S-10MT/DSS - Mitsubishi Programmable Controllers Melsec
Mitsubishi FX3S-10MT/DSS PLC operates on 24V DC power, offers 16K steps memory, and provides transistor outputs for control applications. This unit from Mitsubishi under the Mitsubishi PLC category belongs to the FX Series, supporting 6 digital inputs, 4 digital outputs, 30 local I/O points, fixed architecture, and 210 ns LD execution time for industrial automation systems.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX3S-10MT/DSS |
FX3S-10MT/DSS Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX3S |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 16K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 6 |
| Integrated Digital Outputs | 4 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 30 |
| Local + Remote I/O Points | 30 |
| Expandable | NO |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| Power Consumption (W) | 6 |
| Buffer Battery | NO |
| Protection Class | IP10 |
| Max. Ambient Temperature (Β°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 49 |
| Weight (kg) | 0,22 |
| Width (mm) | 60 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
The Mitsubishi FX3S-10MT/DSS PLC is a compact programmable logic controller intended for basic industrial automation control. It operates using 24V DC power and provides 16K steps program memory stored in EEPROM for stable logic retention. The Mitsubishi FX3S-10MT/DSS PLC uses transistor outputs and supports 30 local I/O points. It belongs to the FX Series and is commonly used in small control panels.
In industrial applications, the Mitsubishi FX3S-10MT/DSS PLC is used in compact conveyors, small packaging machines, simple assembly units, and auxiliary automation tasks. Transistor outputs allow fast and reliable switching, while fixed I/O capacity supports clearly defined control functions. Its low power consumption and compact dimensions make it suitable for space-constrained industrial installations.
The Mitsubishi FX3S-10MT/DSS PLC reflects Mitsubishiβs established PLC design standards for dependable industrial use. With defined memory capacity, certified compliance, and stable electrical operation, it supports continuous functioning in factory environments. The FX3S-10MT/DSS model is suitable for applications requiring consistent logic execution, compact control design, and long-term operational reliability.
