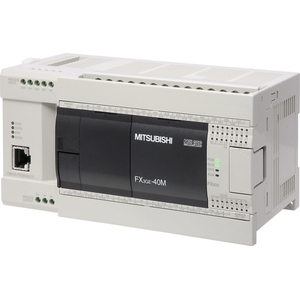

FX3GE-40MR/DS - Mitsubishi Programmable Controllers Melsec
Mitsubishi FX3GE-40MR/DS PLC operates on 24V DC power, offers 32K steps memory, relay outputs, and integrated Ethernet connectivity support. This controller from Mitsubishi under the Mitsubishi PLC category belongs to the FX Series, supporting 24 digital inputs, 16 digital outputs, expandable I/O architecture, and defined execution performance.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX3GE-40MR/DS |
FX3GE-40MR/DS Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX3GE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analogue Inputs | 2 |
| Output Type | RELAY |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| Ethernet Port | 1 |
| Power Consumption (W) | 37 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 86 |
| Weight (kg) | 701 |
| Width (mm) | 175 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
The Mitsubishi FX3GE-40MR/DS PLC is a programmable logic controller designed for compact industrial automation systems. It operates using 24V DC power and provides 32K steps program memory stored in EEPROM. The Mitsubishi FX3GE-40MR/DS PLC includes relay outputs and an integrated Ethernet port, positioning it within the FX Series for industrial control applications.
In industrial environments, the Mitsubishi FX3GE-40MR/DS PLC is used in conveyors, packaging machines, assembly lines, and automated control panels. Ethernet communication enables networked control, while relay outputs support switching of field devices. Expandable I/O capability allows system growth without redesign, supporting stable and predictable automation performance.
The Mitsubishi FX3GE-40MR/DS PLC reflects Mitsubishi’s established PLC engineering focused on long-term operational reliability. Certified compliance, defined execution timing, and controlled power consumption support continuous industrial use. The FX3GE-40MR/DS model is suitable for automation systems requiring dependable logic control, network connectivity, and scalable I/O capacity.
