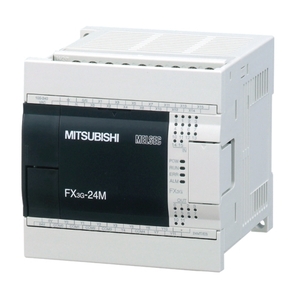

FX3G-24MT/ESS - Mitsubishi Programmable Controllers Melsec
Technical Specifications of Mitsubishi Mitsubishi Programmable Controllers Melsec FX3G-24MT/ESS:
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX3G-24MT/ESS |
FX3G-24MT/ESS Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX3G |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 14 |
| Integrated Digital Outputs | 10 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| Power Consumption (W) | 32 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Max. Ambient Temperature (Β°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 86 |
| Weight (kg) | 0,55 |
| Width (mm) | 90 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
Built on the trusted MELSEC-F SERIES platform, the Mitsubishi FX3G-24MT/ESS PLC offers robust control capabilities with a focus on reliability and scalability. Powered by a 100β240V AC supply, this model integrates 14 digital inputs and 10 transistor-based digital outputs with SOURCE output logic, enabling precise signal handling across a wide range of industrial tasks. The unit features a program memory of 32K steps stored in EEPROM, ensuring long-term data retention and easy program portability. Its cycle time of 210 ns for LD and 500 ns for MOV instructions provides responsive processing for real-time automation applications.
With support for up to 128 local I/O points and a total of 256 I/O points including remote expansion, the FX3G-24MT/ESS is well-suited for growing systems that require modular scalability. The compact form factorβjust 90mm x 90mm x 86mm in size and 0.55 kg in weightβensures easy integration into control panels. This PLC is rated IP10 for protection and operates reliably in ambient temperatures up to 55Β°C. It is also CE, UL/cUL, and UKCA compliant, and approved by shipping standards like ABS, BV, and DNV GL, making it suitable for marine and industrial automation applications.
Offering a power consumption of just 32W, the FX3G-24MT/ESS balances energy efficiency with control performance. It supports expansion modules, optional buffer battery for memory backup, and is part of the Mitsubishi Electric familyβknown globally for reliable industrial control solutions. For full product documentation and configuration support, visit the official Mitsubishi FX3G PLC product page.
The FX3G-24MT/ESS is commonly used in compact industrial machines, automated packaging units, pick-and-place systems, and conveyor belt operations. Engineers rely on this Mitsubishi PLC to control logic sequences, sensor-based triggers, and time-critical outputs with accuracy and consistency.
Thanks to its support for transistor outputs and fast processing speed, it is ideal for applications requiring high-frequency switching, such as motor start/stop logic, light curtains, and digital signal interlocking. The expandable architecture makes it easy to add analog inputs or additional I/O cards for evolving projects, without replacing the base unit.
Whether youβre a junior engineer handling small automation tasks or a senior maintenance engineer retrofitting legacy panels, the FX3G-24MT/ESS offers the right balance of power, size, and ease of use. It works smoothly with GX Developer or GX Works2 software, and its straightforward setup makes it popular across OEMs and system integrators in India and beyond.
